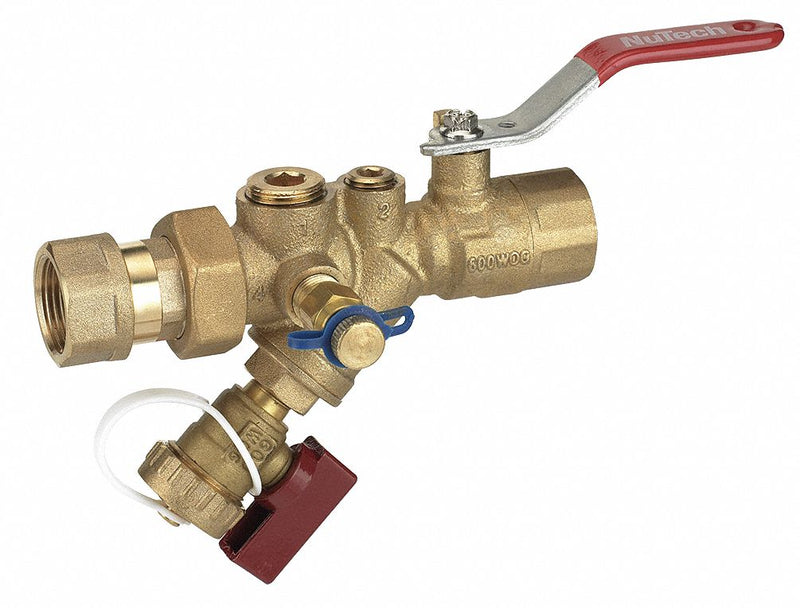

NuTech 1 in Lever Combination Strainer/Ball Valve FNPT x FNPT - SV2E-100F-100F

NuTech ValvesSKU: C1934718
MPN : SV2E-100F-100F
Weight : 4.74 lb

filler

Price:
$249.47 $304.23

Availability : Usually Ships in 7-10 Business Days

Valve features a ball valve, wye strainer, and union all in one unit. Model has a blowoutproof stem with double EPDM O-ring seals and a union with an EPDM O-ring seal. Has a 20 mesh removable stainless steel strainer to ease inspection and cleaning. For use in commercial and residential hydronic heating and cooling applications.

ItemCombination Strainer/Ball Valve
Connection TypeFNPT x FNPT
Pipe Size1 in
Body MaterialForged Brass
Max. Pressure600 psi WOG
Temp. RangeUp to 250 Degrees F
Screen MaterialStainless Steel
Handle MaterialZinc Plated with Vinyl Grip
Handle TypeLever
Bypass Port Size1/2 in
Ball MaterialChrome Plated Brass
Seal MaterialEPDM
Seat MaterialPTFE
Overall Length6.03 in
Stem TypeBlowout Proof
Stem MaterialBrass
IncludesPressure Temperature Port, Removable Wye Strainer
