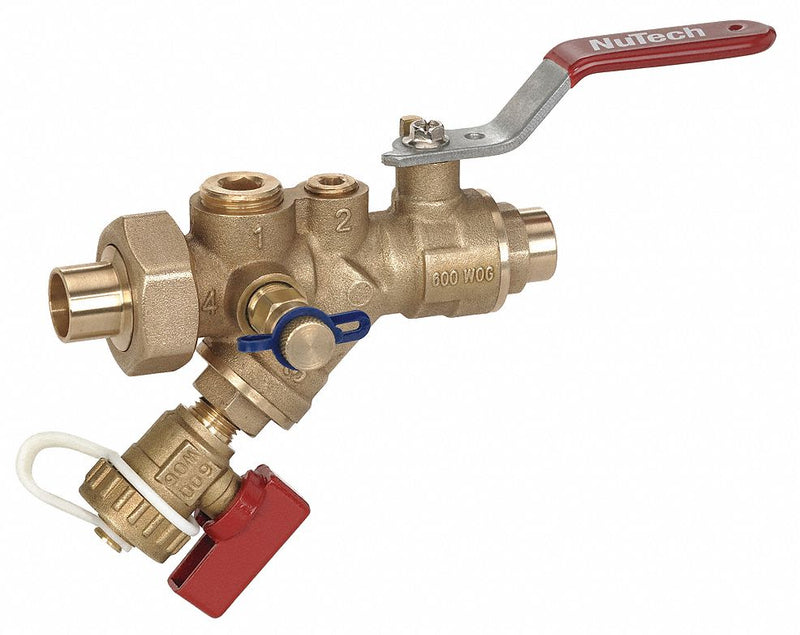

NuTech 3/4 in Lever Combination Strainer/Ball Valve Sweat x Sweat - SV1E-075S-075S

NuTech ValvesSKU: C1934709
MPN : SV1E-075S-075S
Weight : 3.81 lb


$181.48 $221.32

Availability : Usually Ships in 7-10 Business Days

Valve features a ball valve, wye strainer, and union all in one unit. Model has a blowoutproof stem with double EPDM O-ring seals and a union with an EPDM O-ring seal. Has a 20 mesh removable stainless steel strainer to ease inspection and cleaning. For use in commercial and residential hydronic heating and cooling applications.

ItemCombination Strainer/Ball Valve
Connection TypeSweat x Sweat
Pipe Size3/4 in
Body MaterialForged Brass
Max. Pressure600 psi WOG
Temp. RangeUp to 250 Degrees F
Screen MaterialStainless Steel
Handle MaterialZinc Plated with Vinyl Grip
Handle TypeLever
Bypass Port Size1/2 in
Ball MaterialChrome Plated Brass
Seal MaterialEPDM
Seat MaterialPTFE
Overall Length5.95 in
Stem TypeBlowout Proof
Stem MaterialBrass
IncludesPressure Temperature Port, Removable Wye Strainer
