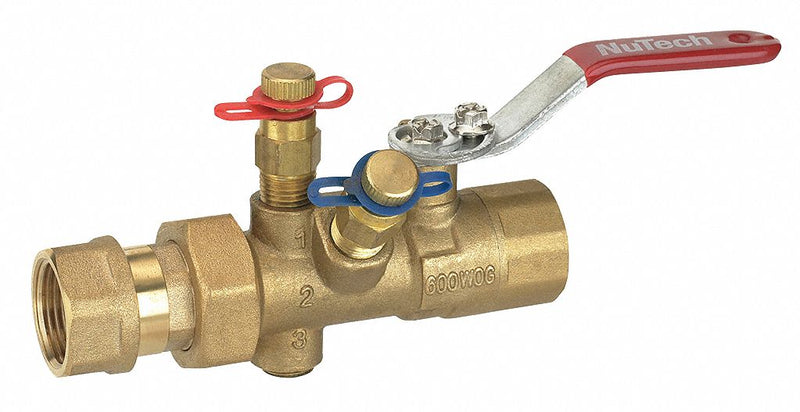

NuTech 1 1/2 in FNPT Manual Balancing Valve, Flow Range 9.5 to 30.0 gpm - MB3E-3A-150F-150F
filler
Availability : Usually Ships in 7-10 Business Days
Features a blowoutproof stem with double EPDM O-ring seals, a union with an EPDM O-ring seal, an adjustable memory stop, and dual pressure/temperature ports. Valve has a brass venturi flow element for greater accuracy and allows for manual balancing and shut-off. For use in commercial and residential hydronic heating and cooling applications.
| Item | Manual Balancing Valve |
| Pipe Size | 1 1/2 in |
| Connection | FNPT |
| Flow Range | 9.5 to 30 gpm |
| Max. Pressure | 600 psi WOG |
| Max. Fluid Temp. | 250 Degrees F |
| Body Material | Forged Brass |
| Ball Material | Chrome Plated Brass |
| Seal Material | EPDM |
| Seat Material | PTFE |
| Handle Material | Zinc Plated with Vinyl Grip |
| Includes | Dual PT Plugs, Memory Stop |
