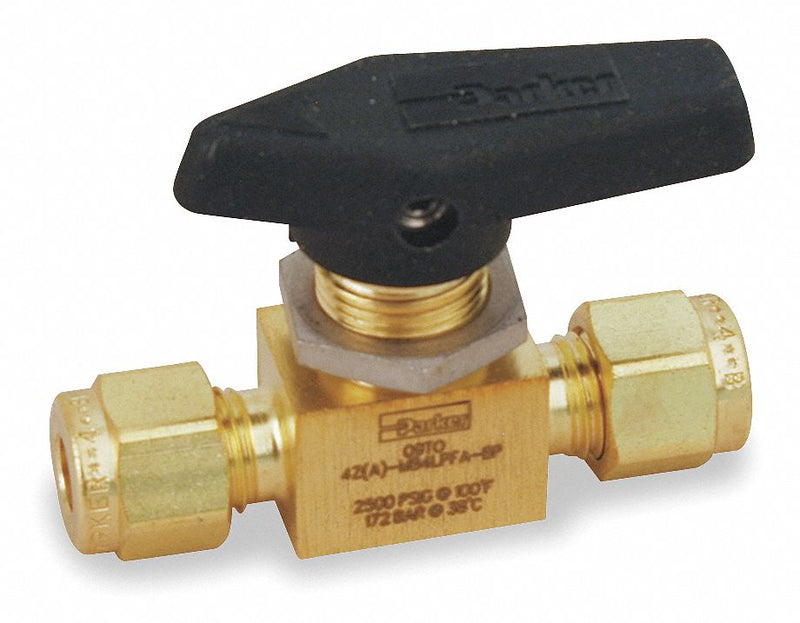

Instrumentation Ball Valves, MB Series, Factory preset to 1000 psig Temp. range: -65 to 300F,Valves have a compact footprint and can be used for bidirectional flow; handle indicates flow direction. PFA seats and a 1-pc. packing provide a leaktight seal. Can be panel-mounted.
| Item | Mini Ball Valve |
| Body Material | Brass |
| Body Style | Inline |
| General Connection Type | Compression |
| Valve Structure | 1-Piece |
| Pipe Size | 3/8 in |
| Tube Size | 3/8 in |
| Connection Type | Comp. x Comp. |
| Port | Standard |
| Max. Pressure | 3000 psi CWP |
| Temp. Range | -65 Degrees to 300 Degrees F |
| Ball Material | 316 Stainless Steel |
| Seat Material | PFA |
| Stem Type | 1-Piece Stem/Ball |
| Handle Type | Lever |
| Handle Material | Nylon |
| Stem Material | 316 Stainless Steel |
| Body Seal Material | PTFE |
| Features | CPI(TM) Compression, Panel Mount |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Brass |
| Standards | ASTM A276, ASTM B 16 Alloy C36000 |
| Overall Length | 4.16 in |
