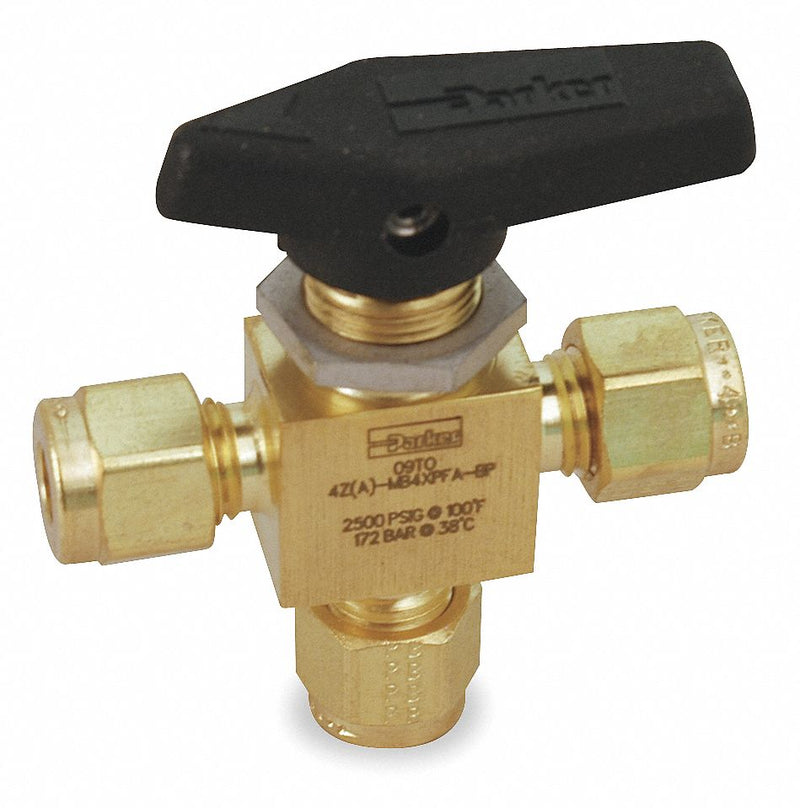

Parker Mini Ball Valve, Brass, 3-Way, 1-Piece, Tube Size 3/8 in, Connection Type Comp. x Comp. x Comp. - 6A-MB6XPFA-BP

ParkerSKU: C1933876
MPN : 6A-MB6XPFA-BP
Weight : 0.55 lb
filler

Price:
$219.54 $267.73

Availability : Usually Ships in 20-30 Business Days

Instrumentation Ball Valves, MB Series, Factory preset to 1000 psig Temp. range: -65 to 300F,Valves have a compact footprint and can be used for bidirectional flow; handle indicates flow direction. PFA seats and a 1-pc. packing provide a leaktight seal. Can be panel-mounted.

ItemMini Ball Valve
Body MaterialBrass
Body Style3-Way
General Connection TypeCompression
Valve Structure1-Piece
Tube Size3/8 in
Connection TypeComp. x Comp. x Comp.
PortStandard
Max. Pressure3000 psi CWP
Temp. Range-65 Degrees to 300 Degrees F
Ball Material316 Stainless Steel
Seat MaterialPFA
Stem Type1-Piece Stem/Ball
Handle TypeLever
Handle MaterialNylon
Stem Material316 Stainless Steel
Body Seal MaterialPTFE
FeaturesA-Lok(R) Compression
Ball Valve Product GroupManual
Valve Basic Body MaterialBrass
StandardsASTM A276, ASTM B 16 Alloy C36000
