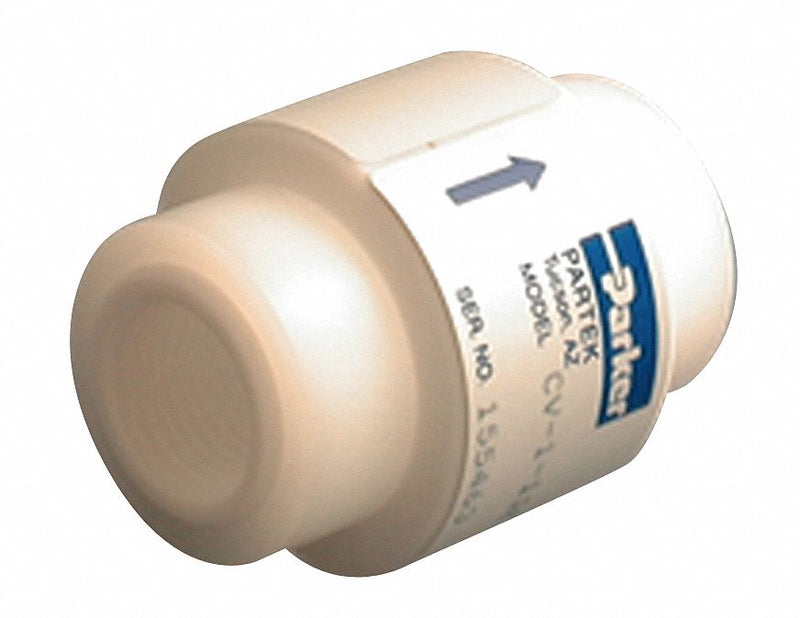

Parker Check Valve, 1/4 in, Single, Inline, PTFE, FNPT x FNPT - CV-1-1144

ParkerSKU: C1910968
MPN : CV-1-1144
Weight : 1.0 lb

filler

Price:
$456.34 $736.03

Availability : Usually Ships in 40 Business Days

PTFE Check Valves, Cracking pressure: 0.25 to 0.75 psi,PTFE construction allows for high chemical resistance and purity without the need of O-rings for sealing. Machined PTFE spring allows for low cracking pressure and minimal back pressure for resealing. Suitable for use in high purity semiconductor applications and for ultra-pure water and aggressive chemical or gas applications.

Item - Check ValvesCheck Valve
Flow DesignSingle
Mechanism and Body DesignInline
Body Material - ValvesPTFE
Pipe or Tube Size - Check Valves1/4 in
Connection Type - Check ValvesFNPT x FNPT
Cracking Pressure - Check Valves0.25 to 0.75 psi
Max. Temp. - Valves266 Degrees F
Min. Temp. - Valves-32 Degrees F
Max. Steam Pressure - ValvesNot Rated
Spring Material - Check ValvesPTFE
Application - ValvesCorrosives
Length2 1/2 in
Width1 15/64 in
Overall Height1 15/64 in
