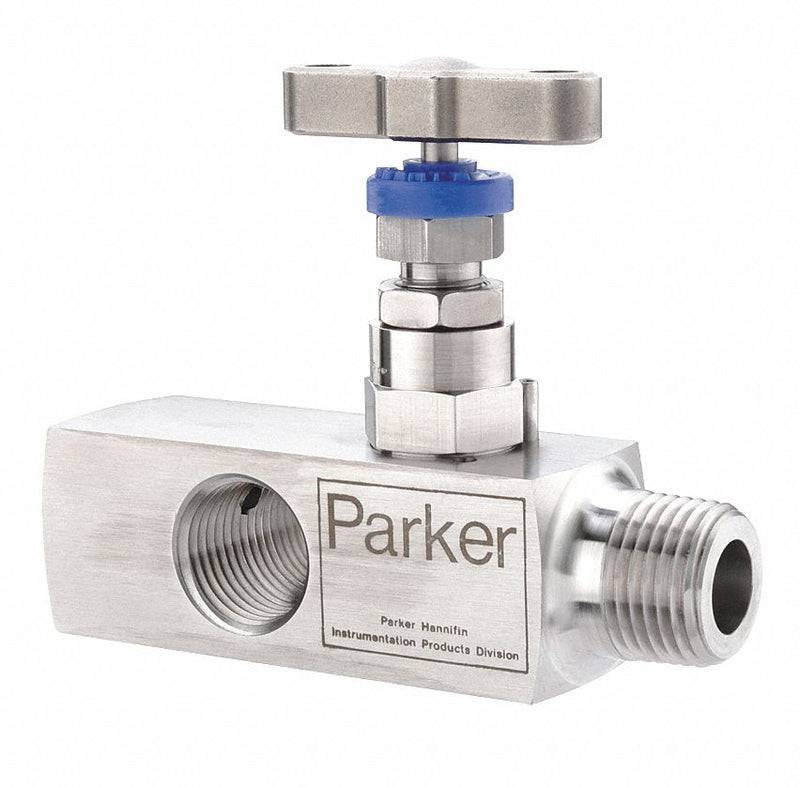

Parker Gauge Valve, Angled, SS, 1/2 In. x 3-1/2 In - HGVS8

ParkerSKU: C1915760
MPN : HGVS8
Weight : 1.11 lb
filler

Price:
$308.78 $376.56

Availability : Usually Ships in 10-15 Business Days

Multiport Gauge Valve, Max. pressure: 6000 psi Temp. range: -65 to 450F,Self-centering rotational tip provides a bubble-tight shutoff; backstop spindle prevents blowout and atmospheric leakage. Has 3 female outlets for multiple installation options. T-bar handle operates easily, with low torque. Externally adjustable PTFE gland packing.

ItemGauge Valve
Fitting StyleAngled
Body MaterialStainless Steel
Pipe Size1/2 in x 3 1/2 in
ConnectionFNPT x MNPT
Stem TypeStainless Steel
Seal MaterialPTFE
Handle MaterialStainless Steel
Max. Pressure6,000 psi
Temp. Rating-65 Degrees to 450 Degrees F
Max. Height3 1/8 in
Length3 5/8 in
