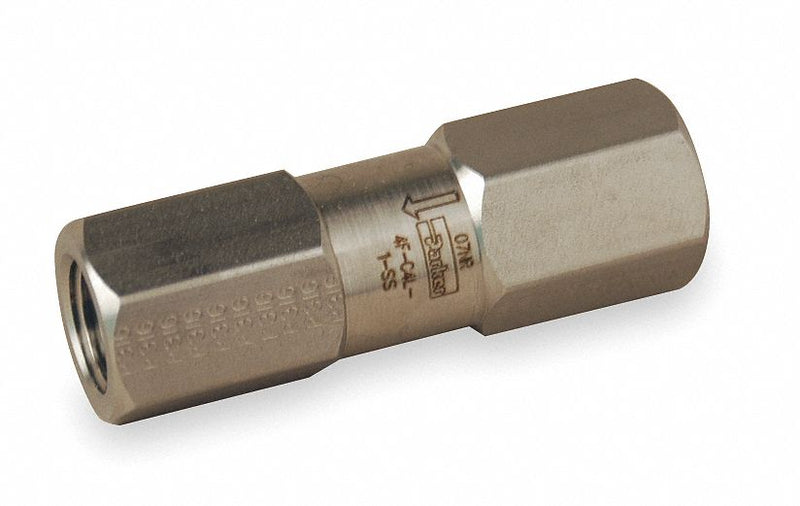

Instrumentation Check Valves, C Series, 6000 psi at 115F Cracking pressure: 1 psi Max. temp.: 400F,Designed for unidirectional flow control. Custom-molded seat helps prevent blowouts. Fluorocarbon back-stopped poppet reduces spring stress. Valves offer heat code traceability for material certification. FNPT connections.
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Poppet |
| Body Material - Valves | 316 Stainless Steel |
| Pipe or Tube Size - Check Valves | 1/2 in |
| Connection Type - Check Valves | FNPT x FNPT |
| Cracking Pressure - Check Valves | 1 psi |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Seal Material - Check Valves | Fluorocarbon |
| Max. Temp. - Valves | 275 Degrees F |
| Min. Temp. - Valves | -30 Degrees F |
| Max. Water Pressure - Valves | 6000 psi @ 100 Degrees F |
| Max. Steam Pressure - Valves | Not Rated |
| Seat Material - Check Valves | Fluorocarbon |
| Spring Material - Check Valves | 316 Stainless Steel |
| Flow - Valves | 11.2 gpm |
| Full Flow - Valves | No |
| Application - Valves | Corrosives |
| Length | 3 9/16 in |
| Cap to Inlet Center | 7 13/32 in |
| Standards | ASTM A 276 Type 316 |
