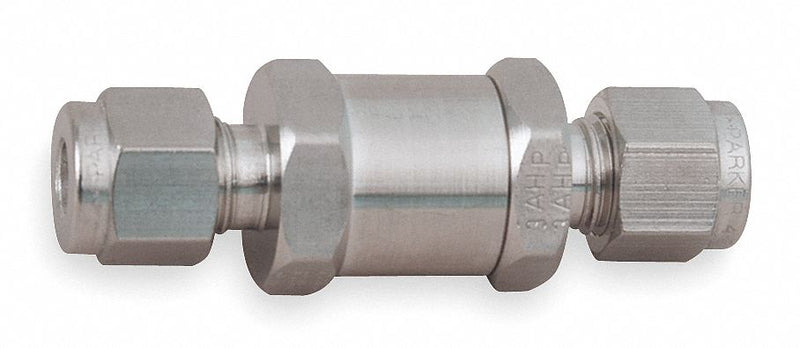

Instrumentation Check Valves, Cracking pressure: 10 psi,Provide unidirectional flow control of fluids and gases. Blowout-resistant seat design. Machined backstop reduces spring stress. Stainless steel check valves have fluorocarbon seats. Brass check valves have nitrile rubber seals. Compression connections.,316 Stainless Steel, 6000 psig CWP for 1/8" to 3/4" 5000 psig CWP for 1" Temp. range: -15 to 400F
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Poppet |
| Body Material - Valves | 316 Stainless Steel |
| Pipe or Tube Size - Check Valves | 1/2 in |
| Connection Type - Check Valves | Compression x Compression |
| Cracking Pressure - Check Valves | 10 psi |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Seal Material - Check Valves | Fluorocarbon |
| Max. Temp. - Valves | 400 Degrees F |
| Min. Temp. - Valves | -15 Degrees F |
| Max. Water Pressure - Valves | 6000 psi @ 100 Degrees F |
| Max. Steam Pressure - Valves | Not Rated |
| Seat Material - Check Valves | Fluorocarbon |
| Spring Material - Check Valves | 316 Stainless Steel |
| Flow - Valves | 3.3 gpm |
| Full Flow - Valves | No |
| Application - Valves | Corrosives |
| Length | 4 1/16 in |
| Hex Size | 1 1/4 in |
| Standards | ASTM A 276 Type 316 |
