Availability : Usually Ships in 21 Business Days

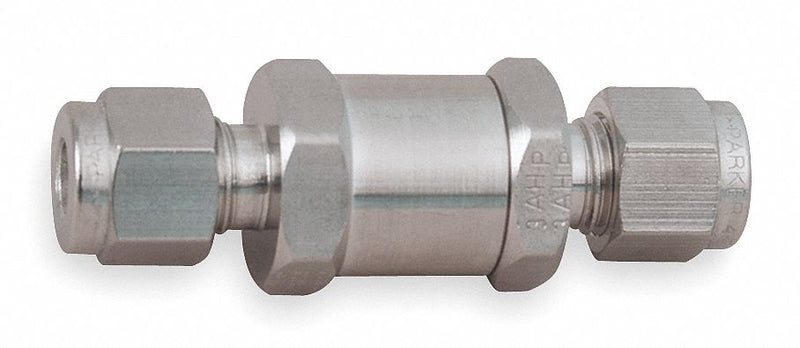

Instrumentation Check Valves, Cracking pressure: 10 psi,Provide unidirectional flow control of fluids and gases. Blowout-resistant seat design. Machined backstop reduces spring stress. Stainless steel check valves have fluorocarbon seats. Brass check valves have nitrile rubber seals. Compression connections.,316 Stainless Steel, 6000 psig CWP for 1/8" to 3/4" 5000 psig CWP for 1" Temp. range: -15 to 400F
Item - Check Valves | Check Valve |
Flow Design | Single |
Mechanism and Body Design | Inline Poppet |
Body Material - Valves | 316 Stainless Steel |
Pipe or Tube Size - Check Valves | 1/8 in |
Connection Type - Check Valves | Compression x Compression |
Cracking Pressure - Check Valves | 10 psi |
Mounting Orientation - Check Valves | Horizontal, Vertical |
Seal Material - Check Valves | Fluorocarbon |
Max. Temp. - Valves | 400 Degrees F |
Min. Temp. - Valves | -15 Degrees F |
Max. Water Pressure - Valves | 6000 psi @ 100 Degrees F |
Max. Steam Pressure - Valves | Not Rated |
Seat Material - Check Valves | Fluorocarbon |
Spring Material - Check Valves | 316 Stainless Steel |
Flow - Valves | 0.22 gpm |
Full Flow - Valves | No |
Application - Valves | Corrosives |
Length | 2 9/32 in |
Hex Size | 5/8 in |
Standards | ASTM A 276 Type 316 |
