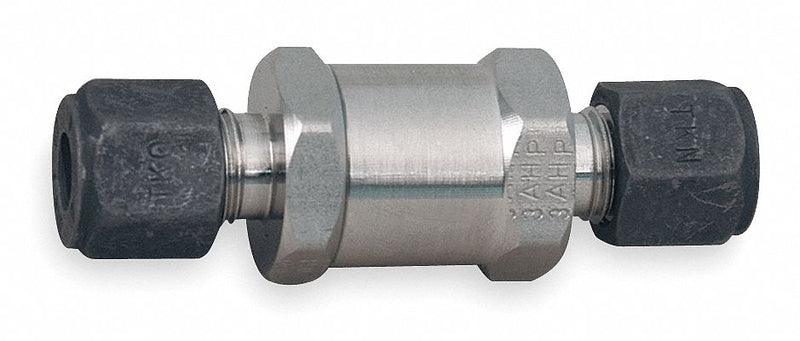

Parker Check Valve, 3/8 in, Single, Inline Poppet, 316 Stainless Steel, Compression x Compression - 6Z-C6L-10-SS

ParkerSKU: C1910953
MPN : 6Z-C6L-10-SS
Weight : 1.0 lb


$246.68 $300.83

Availability : Usually Ships in 20-30 Business Days

Instrumentation Check Valves, Cracking pressure: 10 psi,Provide unidirectional flow control of fluids and gases. Blowout-resistant seat design. Machined backstop reduces spring stress. Stainless steel check valves have fluorocarbon seats. Brass check valves have nitrile rubber seals. Compression connections.,316 Stainless Steel, 6000 psig CWP for 1/8" to 3/4" 5000 psig CWP for 1" Temp. range: -15 to 400F

Item - Check ValvesCheck Valve
Flow DesignSingle
Mechanism and Body DesignInline Poppet
Body Material - Valves316 Stainless Steel
Pipe or Tube Size - Check Valves3/8 in
Connection Type - Check ValvesCompression x Compression
Cracking Pressure - Check Valves10 psi
Mounting Orientation - Check ValvesHorizontal, Vertical
Seal Material - Check ValvesFluorocarbon
Max. Temp. - Valves400 Degrees F
Min. Temp. - Valves-15 Degrees F
Max. Water Pressure - Valves6000 psi @ 100 Degrees F
Max. Steam Pressure - ValvesNot Rated
Seat Material - Check ValvesFluorocarbon
Spring Material - Check Valves316 Stainless Steel
Flow - Valves2.09 gpm
Full Flow - ValvesNo
Application - ValvesCorrosives
Length3 1/4 in
Hex Size1 in
StandardsASTM A 276 Type 316
