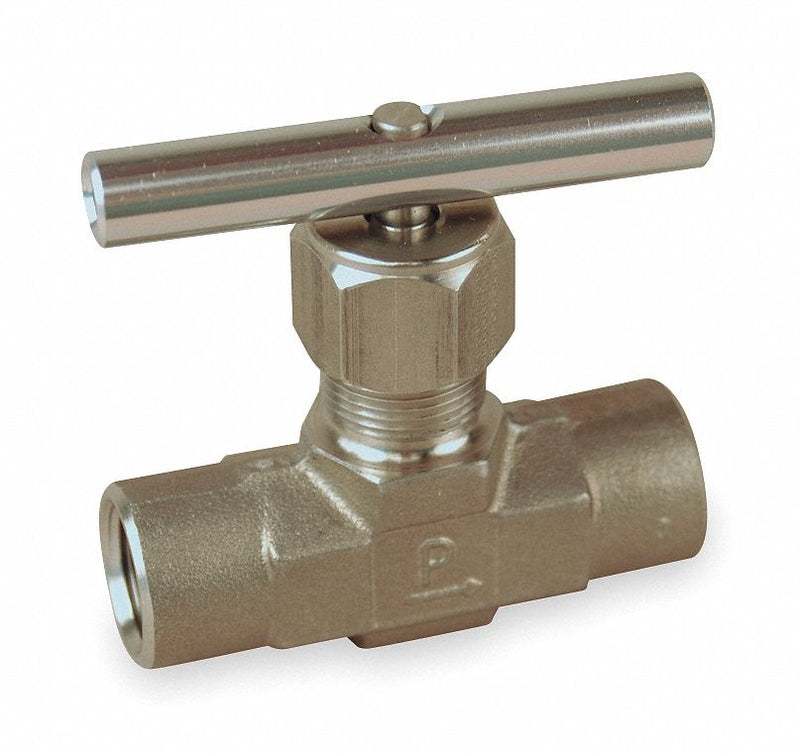

General-Purpose,Packing above the stem thread (PAT) provides bubble-tight shutoff. Cold-formed body threads. Strain-hardened stem threads. PTFE seals.,Tested in accordance with ISA S75.02.,316 Stainless Steel, Max. pressure: 5000 psig CWP,Packing above the stem thread (PAT) provides bubble-tight shutoff. Cold-formed body threads. Strain-hardened stem threads. PTFE seals.,Instrumentation Needle Valves
| Item | Needle Valve |
| Fitting Style | Straight |
| Body Material | 316 Stainless Steel |
| Pipe Size | 1/2 in |
| Connection | FNPT |
| Stem Type | PCTFE |
| Seal Material | PTFE |
| Handle Material | Nylon |
| Max. Pressure | 5,000 psi |
| Temp. Rating | -65 Degrees to 350 Degrees F |
| Max. Flow | 1.29 gpm |
| Max. Height | 4 17/64 in |
| Length | 2 49/64 in |
