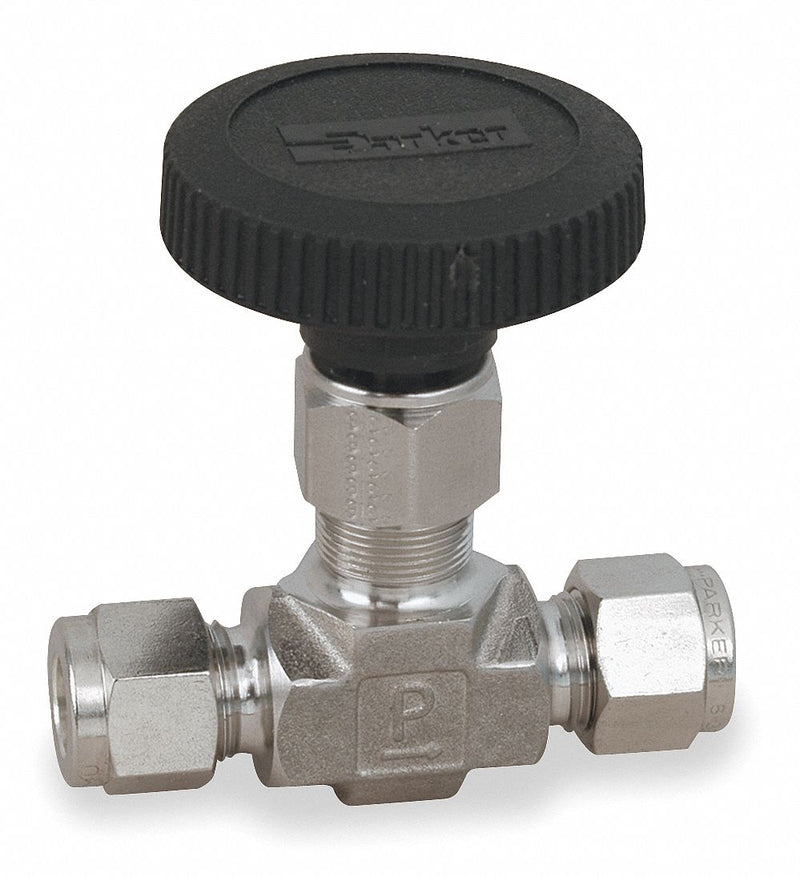

General-Purpose,Packing above the stem thread (PAT) provides bubble-tight shutoff. Cold-formed body threads. Strain-hardened stem threads. PTFE seals.,Tested in accordance with ISA S75.02.,316 Stainless Steel, Max. pressure: 5000 psig CWP,Packing above the stem thread (PAT) provides bubble-tight shutoff. Cold-formed body threads. Strain-hardened stem threads. PTFE seals.,Instrumentation Needle Valves
| Item | Needle Valve |
| Fitting Style | Straight |
| Body Material | 316 Stainless Steel |
| Tube Size | 1/4 in |
| Connection | A-LOK(R)/Compression |
| Stem Type | Regulating |
| Seal Material | PTFE |
| Handle Material | Nylon |
| Max. Pressure | 5,000 psi |
| Temp. Rating | -65 Degrees to 450 Degrees F |
| Max. Flow | 0.43 gpm |
| Max. Height | 3 1/16 in |
| Length | 2 5/16 in |
| Standards | Tested In Accordance to ISA S75.02 |
