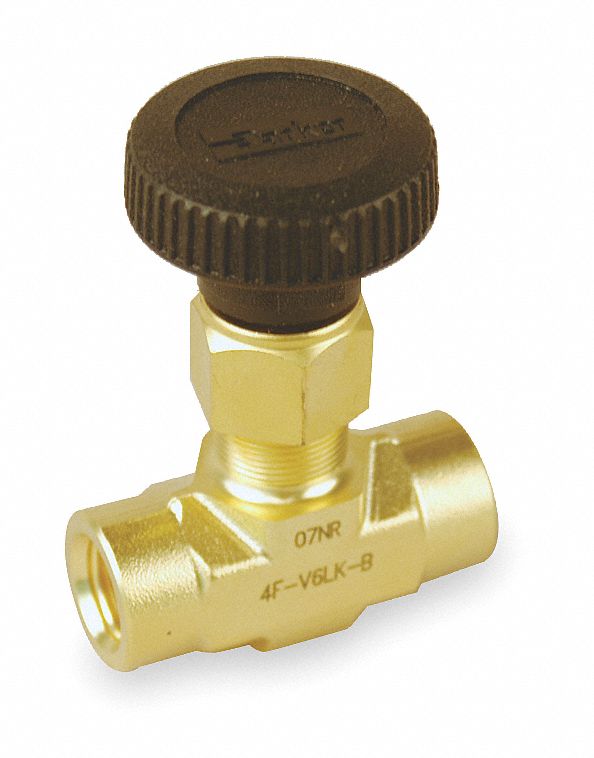

General-Purpose,Packing above the stem thread (PAT) provides bubble-tight shutoff. Cold-formed body threads. Strain-hardened stem threads. PTFE seals.,Tested in accordance with ISA S75.02.,Brass, Max. pressure: 3000 psig CWP,Packing above the stem thread (PAT) provides bubble-tight shutoff. Cold-formed body threads. Strain-hardened stem threads. PTFE seals.,Instrumentation Needle Valves
| Item | Needle Valve |
| Fitting Style | Straight |
| Body Material | Brass |
| Pipe Size | 1/4 in |
| Connection | FNPT |
| Stem Type | PCTFE |
| Seal Material | PTFE |
| Handle Material | Nylon |
| Max. Pressure | 3,000 psi |
| Temp. Rating | -65 Degrees to 350 Degrees F |
| Max. Flow | 0.8 gpm |
| Max. Height | 3 35/64 in |
| Length | 1 7/8 in |
