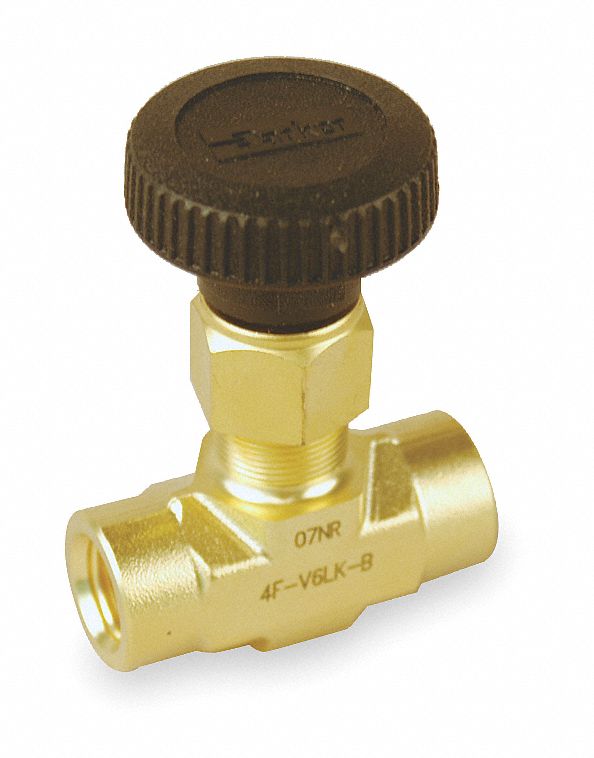

Parker Needle Valve, Straight, Brass, 1/4 In., FNPT - 4F-V6LR-B

ParkerSKU: C1915752
MPN : 4F-V6LR-B
Weight : 0.39 lb
filler

Price:
$171.95 $209.70

Availability : Usually Ships in 10-15 Business Days

General-Purpose,Packing above the stem thread (PAT) provides bubble-tight shutoff. Cold-formed body threads. Strain-hardened stem threads. PTFE seals.,Tested in accordance with ISA S75.02.,Brass, Max. pressure: 3000 psig CWP,Packing above the stem thread (PAT) provides bubble-tight shutoff. Cold-formed body threads. Strain-hardened stem threads. PTFE seals.,Instrumentation Needle Valves

ItemNeedle Valve
Fitting StyleStraight
Body MaterialBrass
Pipe Size1/4 in
ConnectionFNPT
Stem TypeBlunt
Seal MaterialPTFE
Handle MaterialNylon
Max. Pressure3,000 psi
Temp. Rating-65 Degrees to 450 Degrees F
Max. Flow0.73 gpm
Max. Height3 35/64 in
Length1 7/8 in
StandardsTested In Accordance to ISA S75.02
