Availability : Usually Ships in 20-30 Business Days

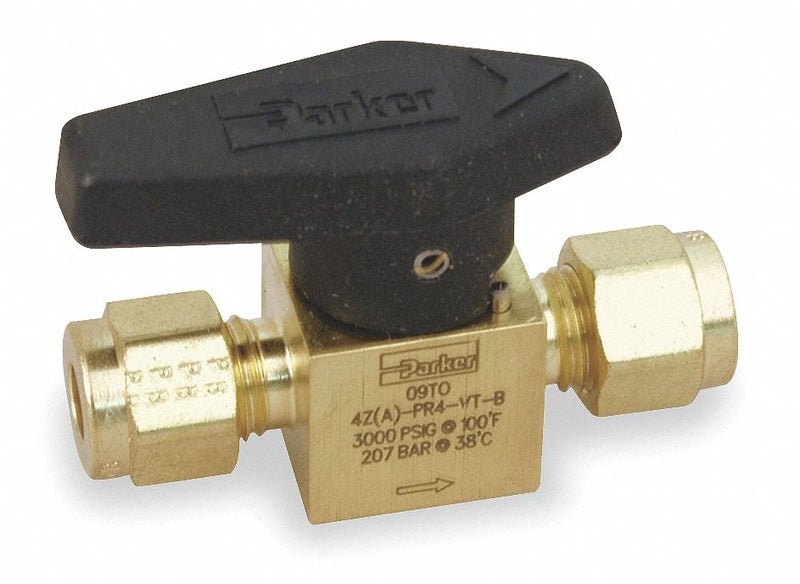

Instrumentation Plug Valves, Max. pressure: 3000 psig CWP Temp. range: -10 to 450F,1/4-turn operation, small footprint, and blowout-resistant seat design allow forward flow throttling. Handle indicates flow direction. Pressure rating is reduced to 150 psig when flow is opposite to the indicated direction. Fluorocarbon seats and seals. Compression connections.,Meet ASTM A479 Type 316 Standards.
|Item||Rotary Plug Valve|
|Tube Size||3/8 in|
|Max. Pressure||3000 psi CWP|
|Temp. Range||-10 Degrees To 450 Degrees F|
|Coefficient of Volume||3.19|
|Handle Type||Quarter Turn|
|Seal Material||Fluorocarbon Rubber|
|Overall Height||1 5/32 in|
|Overall Length||2 33/50 in|
|Standards||ASTM B 16 Alloy C36000|
