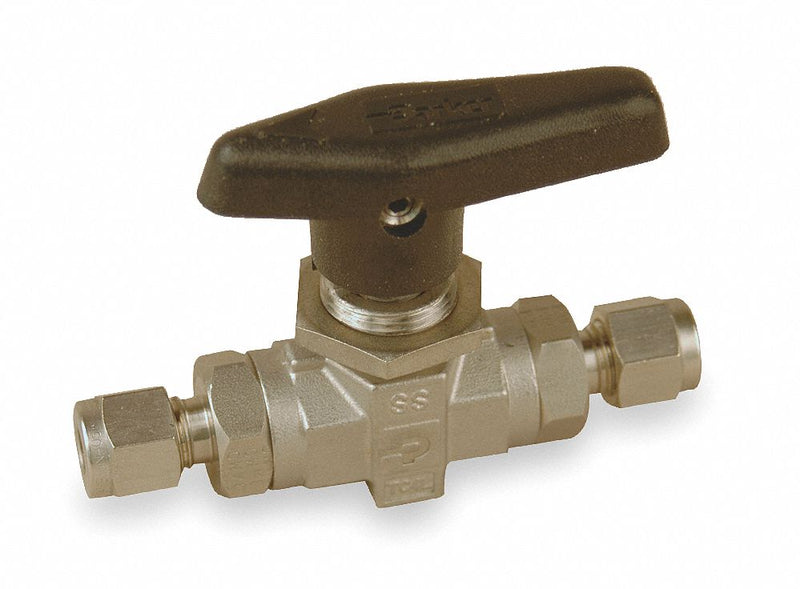

Featuring excellent low-temperature performance and quick 1/4-turn On/Off control, this PARKER mini ball valve has a free-floating ball design that helps provide a positive seal and extend seat life. The straight through flow path provides for minimum pressure drop. Packing nut eases inline adjustment. Valve is panel-mountable and comes with a tough, fracture-resistant nylon handle
| Item | Mini Ball Valve |
| Body Material | 316 Stainless Steel |
| Body Style | Inline |
| General Connection Type | Compression |
| Valve Structure | 3-Piece |
| Tube Size | 3/8 in |
| Connection Type | Comp. x Comp. |
| Port | Standard |
| Max. Pressure | 6000 psi CWP |
| Temp. Range | -65 Degrees to 350 Degrees F |
| Ball Material | 316 Stainless Steel |
| Seat Material | PCTFE |
| Stem Type | Self-Adjusting |
| Handle Type | Lever |
| Handle Material | Nylon |
| Stem Material | 316 Stainless Steel |
| Body Seal Material | PTFE |
| Features | CPI(TM) Compression, Panel Mount |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Stainless Steel |
| Standards | ASTM A 276 Type 316 |
| Overall Length | 3.6 in |
