Parker Ball Valve, 316 Stainless Steel, Inline, 2-Piece, Pipe Size 1/2 in, Connection Type FNPT x FNPT - HPBYB8FF

ParkerSKU: C1933955
MPN : HPBYB8FF
Weight : 2.15 lb

filler

Price:
$295.49 $476.60

Availability : Usually Ships in 28 Business Days

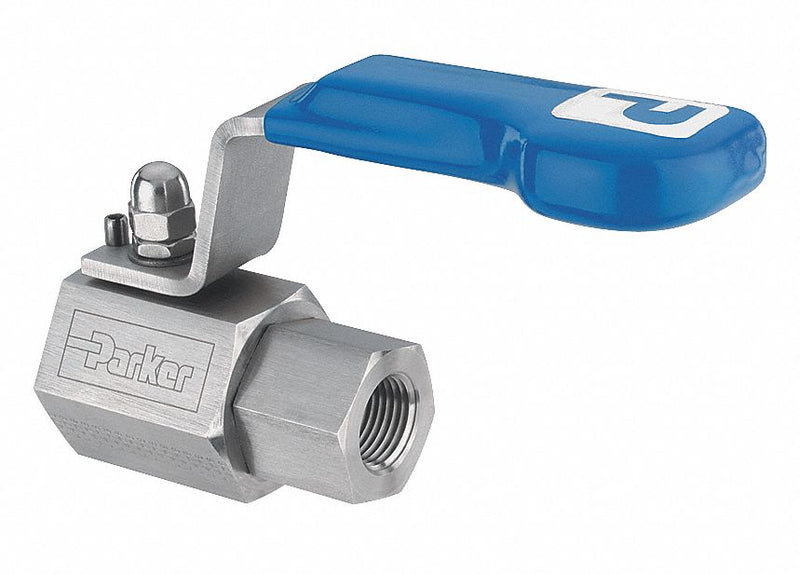

Featuring excellent low-temperature performance and quick 1/4-turn On/Off control, this PARKER ball valve has a free-floating ball design that helps provide a positive seal and extend seat life. The straight through flow path provides for minimum pressure drop. Packing nut eases inline adjustment. Valve is panel-mountable and comes with a tough, fracture-resistant nylon handle

ItemBall Valve
Body Material316 Stainless Steel
Body StyleInline
General Connection TypeFemale NPT
Valve Structure2-Piece
Pipe Size1/2 in
Connection TypeFNPT x FNPT
PortStandard
Max. Pressure6000 psi CWP
Temp. Range-54 Degrees to 400 Degrees F
Ball Material316 Stainless Steel
Seat MaterialPTFE
Stem TypeSelf-Adjusting
Handle TypeLever
Handle MaterialNylon
Stem Material316 Stainless Steel
Body Seal MaterialPTFE
Ball Valve Product GroupManual
Valve Basic Body MaterialStainless Steel
StandardsANSI, ASME B13.34
Overall Length6.56 in
