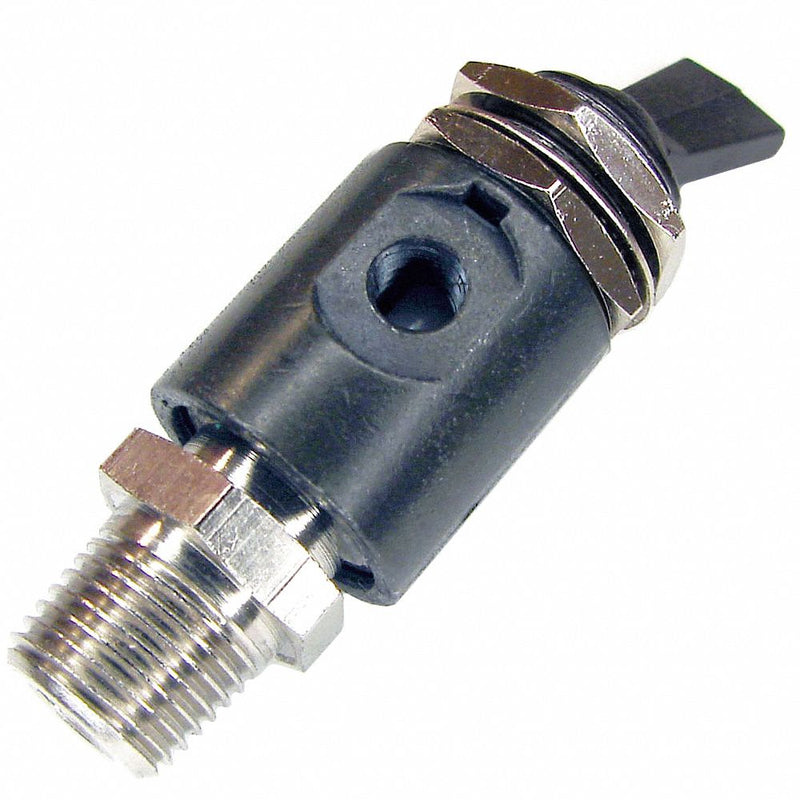

Pneumadyne 2.16 inL Aluminum / Brass 3-Way, NPT Toggle Valve with Spring Return Toggle Handle - F0-30-1
filler
Availability : Usually Ships in 10 Business Days
Features 7 swivel input options and the compact size is ideal for tight spaces.
| Item | Toggle Valve |
| Valve Design | 3-Way |
| Valve Configuration | Normally Closed |
| Body Material | Aluminum / Brass |
| Connection Type | NPT |
| Pipe Size | 1/8 x 10-32 |
| Max. Pressure | 125 psi |
| CFM @ 75 PSI | 17.3 |
| Temp. Range | -20 Degrees to 160 Degrees F |
| Coefficient of Volume | 0.24 |
| Handle Type | Spring Return Toggle |
| Overall Length | 2.16 in |
| Seal Material | Buna-N |
| Seat Material | Buna-N |
| Stem Material | Brass |
