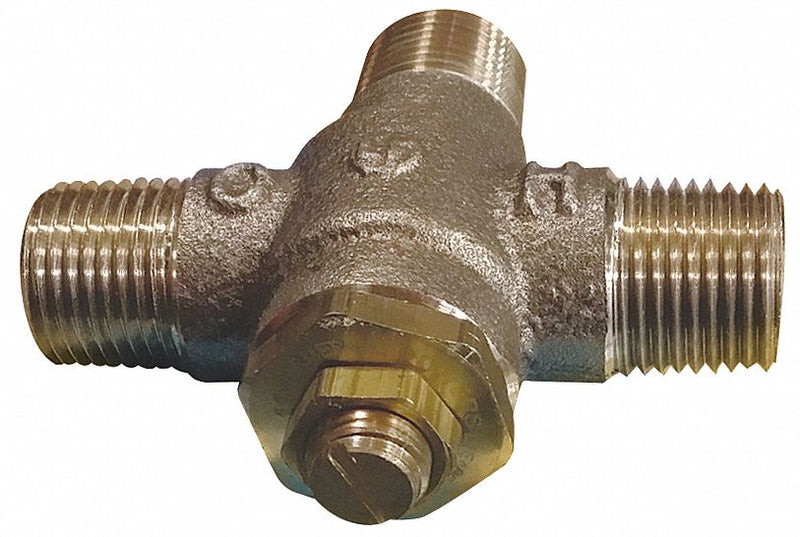

Powers 1/2 in Threaded Inlet Type Thermostatic Mixing Valve, Lead Free Copper Silicon Alloy, 4 gpm - LFE480-00

WattsSKU: C1946305
MPN : LFE480-00
Weight : 1.0 lb

filler

Price:
$179.67 $219.11

Availability : Usually Ships in 7-10 Business Days

Thermostatic Mixing Valve; Body Material: Lead Free Copper Silicon Alloy; Flow Rate: 4 gpm; Inlet Type: Threaded; Outlet Type: MNPT; Inlet Size: 1/2 in; Outlet Size: 1/2 in; Temp. Range: 80 Degrees to 120 Degrees F; Max. Pressure: 125 psi; Overall Height: 2 15/16 in; Overall Width: 3 3/16 in; Inlet Temperature (Cold): 40 Degrees to 80 Degrees F; Inlet Temperature (Hot): 120 Degrees to 180 Degrees F; For Use With: Domestic Hot Water Applications; Standards: ASSE 1070

ItemThermostatic Mixing Valve
Body MaterialLead Free Copper Silicon Alloy
Flow Rate4 gpm
Inlet TypeThreaded
Outlet TypeMNPT
Inlet Size1/2 in
Outlet Size1/2 in
Temp. Range80 Degrees to 120 Degrees F
Max. Pressure125 psi
Overall Height2 15/16 in
Overall Width3 3/16 in
Inlet Temperature (Cold)40 Degrees to 80 Degrees F
Inlet Temperature (Hot)120 Degrees to 180 Degrees F
For Use WithDomestic Hot Water Applications
StandardsASSE 1070
