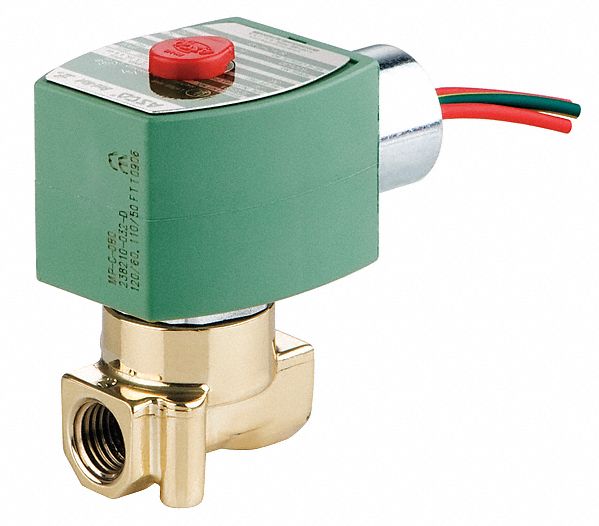

Redhat 1/8" Cryogenic Solenoid Valve, 1/8 in Orifice Dia., 120V AC - 8263H240LT

RedhatSKU: C1935747
MPN : 8263H240LT
Weight : 1.4 lb
filler

Price:
$444.35 $541.89

Availability : Usually Ships in 7-10 Business Days

Cryogenic Solenoid Valve; Solenoid Valve Product Group: Cryogenic Solenoid Valve; Valve Ways and Positions: 2-Way/2-Position; Valve Configuration: Normally Closed; Media - Valves: Air, Ammonia, Cryogenic, Fuel Oil, Inert Gases, Light Oil, Oxygen, Steam, Vacuum, Water; Pipe Size - Valves: 1/8 in; Min. Operating Pressure Differential: 0 psi; Max. Operating Pressure Differential Air/Inert Gas: 155 psi; Max. Operating Pressure Differential Light Oil: 155 psi; Max. Operating Pressure Differential Water: 155 psi; Environmental Rating - Valves: Corrosive, Hazardous, Indoor, Outdoor; Voltage: 120V AC; Coefficient of Volume: 0.35; Body Material - Valves: Brass; Coil Insulation Class: F; Seal Material - Valves: PTFE; Orifice Dia.: 1/8 in; Max. Operating Pressure Differential: 155 psi; Watts: 10.1 W; Overall Length: 1 9/16 in; Overall Width: 1 61/64 in; Overall Height: 3 5/32 in; NEMA Rating: 1, 2, 3, 3S, 4, 4X; Coil Enclosure: Watertight No Junction Box; Electrical Connections: 1/2 in Conduit w/18 in Leads; Max. Fluid Temp.: 150 Degrees F; Seat Material: PTFE; Disc Material: PTFE; Standards: CSA Certified, Meets Applicable CE Directives

ItemCryogenic Solenoid Valve
Solenoid Valve Product GroupCryogenic Solenoid Valve
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesAir, Ammonia, Cryogenic, Fuel Oil, Inert Gases, Light Oil, Oxygen, Steam, Vacuum, Water
Pipe Size - Valves1/8 in
Min. Operating Pressure Differential0 psi
Max. Operating Pressure Differential Air/Inert Gas155 psi
Max. Operating Pressure Differential Light Oil155 psi
Max. Operating Pressure Differential Water155 psi
Environmental Rating - ValvesCorrosive, Hazardous, Indoor, Outdoor
Voltage120V AC
Coefficient of Volume0.35
Body Material - ValvesBrass
Coil Insulation ClassF
Seal Material - ValvesPTFE
Orifice Dia.1/8 in
Max. Operating Pressure Differential155 psi
Watts10.1 W
Overall Length1 9/16 in
Overall Width1 61/64 in
Overall Height3 5/32 in
NEMA Rating1, 2, 3, 3S, 4, 4X
Coil EnclosureWatertight No Junction Box
Electrical Connections1/2 in Conduit w/18 in Leads
Max. Fluid Temp.150 Degrees F
Seat MaterialPTFE
DiscDisc
