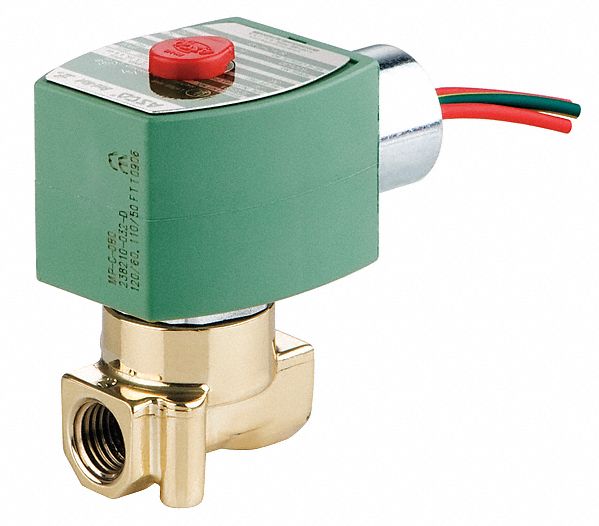

Cryogenic Solenoid Valve; Solenoid Valve Product Group: Cryogenic Solenoid Valve; Valve Ways and Positions: 2-Way/2-Position; Valve Configuration: Normally Closed; Media - Valves: Air, Ammonia, Cryogenic, Fuel Oil, Inert Gases, Light Oil, Oxygen, Steam, Vacuum, Water; Pipe Size - Valves: 3/8 in; Min. Operating Pressure Differential: 0 psi; Max. Operating Pressure Differential Air/Inert Gas: 40 psi; Environmental Rating - Valves: Corrosive, Hazardous, Indoor, Outdoor; Voltage: 120V AC; Coefficient of Volume: 0.88; Body Material - Valves: Brass; Coil Insulation Class: F; Seal Material - Valves: PTFE; Orifice Dia.: 9/32 in; Max. Operating Pressure Differential: 40 psi; Watts: 17.1 W; Overall Length: 1 7/8 in; Overall Width: 1 61/64 in; Overall Height: 3 1/4 in; NEMA Rating: 1, 2, 3, 3S, 4, 4X; Coil Enclosure: Watertight No Junction Box; Electrical Connections: 1/2 in Conduit w/18 in Leads; Max. Fluid Temp.: 150 Degrees F; Seat Material: PTFE; Disc Material: PTFE; Standards: CSA Certified, Meets Applicable CE Directives
| Item | Cryogenic Solenoid Valve |
| Solenoid Valve Product Group | Cryogenic Solenoid Valve |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Air, Ammonia, Cryogenic, Fuel Oil, Inert Gases, Light Oil, Oxygen, Steam, Vacuum, Water |
| Pipe Size - Valves | 3/8 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 40 psi |
| Environmental Rating - Valves | Corrosive, Hazardous, Indoor, Outdoor |
| Voltage | 120V AC |
| Coefficient of Volume | 0.88 |
| Body Material - Valves | Brass |
| Coil Insulation Class | F |
| Seal Material - Valves | PTFE |
| Orifice Dia. | 9/32 in |
| Max. Operating Pressure Differential | 40 psi |
| Watts | 17.1 W |
| Overall Length | 1 7/8 in |
| Overall Width | 1 61/64 in |
| Overall Height | 3 1/4 in |
| NEMA Rating | 1, 2, 3, 3S, 4, 4X |
| Coil Enclosure | Watertight No Junction Box |
| Electrical Connections | 1/2 in Conduit w/18 in Leads |
| Max. Fluid Temp. | 150 Degrees F |
| Seat Material | PTFE |
| Disc Material | PTFE |
| Standards | CSA Certified, Meets Applicable CE Directives |
