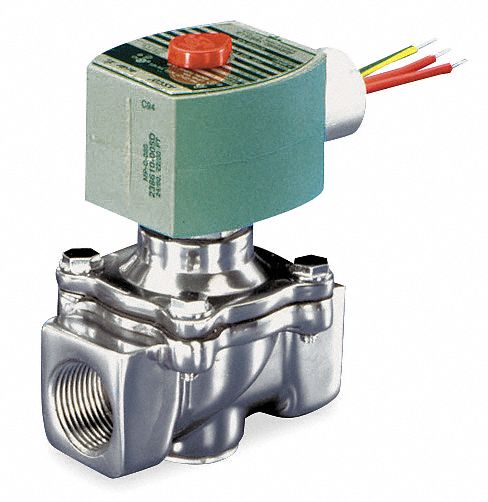

Fuel Gas Solenoid Valve with Test Port; Solenoid Valve Product Group: Fuel Gas Solenoid Valve with Test Port; Valve Ways and Positions: 2-Way/2-Position; Valve Configuration: Normally Closed; Media - Valves: Fuel Gas; Pipe Size - Valves: 1/2 in; Min. Operating Pressure Differential: 0 psi; Max. Operating Pressure Differential Air/Inert Gas: 5 psi; Max. Operating Pressure Differential Water: 5 psi; Environmental Rating - Valves: Indoor, Outdoor; Voltage: 120V AC; Coefficient of Volume: 4.4; Body Material - Valves: Aluminum; Coil Insulation Class: F; Seal Material - Valves: NBR; Max. Operating Pressure Differential: 5 psi; Orifice Dia.: 3/4 in; BtuH: 238,500; Ambient Temp. Range: -40 Degrees to 125 Degrees F; Watts: 17.1 W; NEMA Rating: 1, 2, 3, 3S, 4, 4X; Coil Enclosure: General Purpose No Junction Box and Watertight; Electrical Connections: 1/2 in Conduit with 18 in Leads; Max. Fluid Temp.: 125 Degrees F; Hz: 50/60; Overall Length: 2 3/4 in; Overall Width: 2 23/64 in; Overall Height: 4 1/32 in; Center Line Pipe Center Size: 3 15/32 in; Application: For On-Off Control of Fuel Gas in Commercial and Industrial Gas Burners; Standards: CSA, FM, UL
| Item | Fuel Gas Solenoid Valve with Test Port |
| Solenoid Valve Product Group | Fuel Gas Solenoid Valve with Test Port |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Fuel Gas |
| Pipe Size - Valves | 1/2 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 5 psi |
| Max. Operating Pressure Differential Water | 5 psi |
| Environmental Rating - Valves | Indoor, Outdoor |
| Voltage | 120V AC |
| Coefficient of Volume | 4.4 |
| Body Material - Valves | Aluminum |
| Coil Insulation Class | F |
| Seal Material - Valves | NBR |
| Max. Operating Pressure Differential | 5 psi |
| Orifice Dia. | 3/4 in |
| BtuH | 238,500 |
| Ambient Temp. Range | -40 Degrees to 125 Degrees F |
| Watts | 17.1 W |
| NEMA Rating | 1, 2, 3, 3S, 4, 4X |
| Coil Enclosure | General Purpose No Junction Box and Watertight |
| Electrical Connections | 1/2 in Conduit with 18 in Leads |
| Max. Fluid Temp. | 125 Degrees F |
| Hz | 50/60 |
| Overall Length | 2 3/4 in |
| Overall Width | 2 23/64 in |
| Overall Height | 4 1/32 in |
| Center Line Pipe Center Size | 3 15/32 in |
| Application | For On-Off C |
