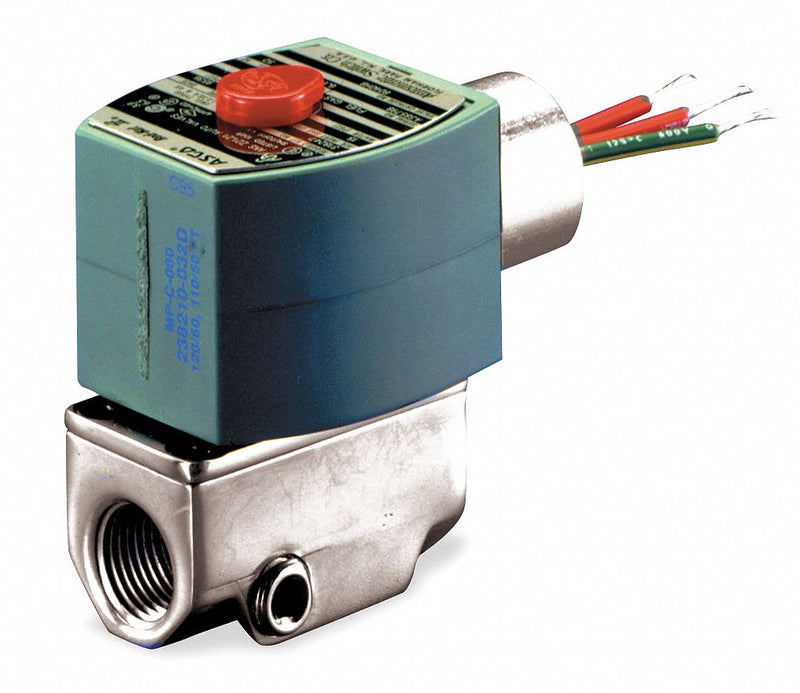

Redhat 1/4" Aluminum Fuel Gas Solenoid Valve with Test Port, Normally Closed - 8040H007

RedhatSKU: C1935815
MPN : 8040H007
Weight : 1.05 lb

filler

Price:
$112.67 $181.73

Availability : Usually Ships in 10 Business Days

Fuel Gas Solenoid Valve with Test Port; Solenoid Valve Product Group: Fuel Gas Solenoid Valve with Test Port; Valve Ways and Positions: 2-Way/2-Position; Valve Configuration: Normally Closed; Media - Valves: Fuel Gas; Pipe Size - Valves: 1/4 in; Min. Operating Pressure Differential: 0 psi; Max. Operating Pressure Differential Air/Inert Gas: 15 psi; Max. Operating Pressure Differential Water: 15 psi; Environmental Rating - Valves: Indoor, Outdoor; Voltage: 120V AC; Coefficient of Volume: 1.1; Body Material - Valves: Aluminum; Coil Insulation Class: F; Seal Material - Valves: NBR; Max. Operating Pressure Differential: 15 psi; Orifice Dia.: 5/16 in; BtuH: 59,000; Ambient Temp. Range: -40 Degrees to 125 Degrees F; Watts: 6.1 W; NEMA Rating: 1, 2, 3, 3S, 4, 4X; Coil Enclosure: General Purpose No Junction Box and Watertight; Electrical Connections: 18 in Leads; Max. Fluid Temp.: 125 Degrees F; Hz: 50/60; Overall Length: 2 in; Overall Width: 1 11/16 in; Overall Height: 2 3/4 in; Center Line Pipe Center Size: 2 5/16 in; Application: For Gas Pilot Control of Commercial and Industrial Gas Burners; Standards: CSA for Safety Shutoff, FM, UL

ItemFuel Gas Solenoid Valve with Test Port
Solenoid Valve Product GroupFuel Gas Solenoid Valve with Test Port
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesFuel Gas
Pipe Size - Valves1/4 in
Min. Operating Pressure Differential0 psi
Max. Operating Pressure Differential Air/Inert Gas15 psi
Max. Operating Pressure Differential Water15 psi
Environmental Rating - ValvesIndoor, Outdoor
Voltage120V AC
Coefficient of Volume1.1
Body Material - ValvesAluminum
Coil Insulation ClassF
Seal Material - ValvesNBR
Max. Operating Pressure Differential15 psi
Orifice Dia.5/16 in
BtuH59,000
Ambient Temp. Range-40 Degrees to 125 Degrees F
Watts6.1 W
NEMA Rating1, 2, 3, 3S, 4, 4X
Coil EnclosureGeneral Purpose No Junction Box and Watertight
Electrical Connections18 in Leads
Max. Fluid Temp.125 Degrees F
Hz50/60
Overall Length2 in
Overall Width1 11/16 in
Overall Height2 3/4 in
Center Line Pipe Center Size2 5/16 in
ApplicationFor Gas Pilot Control of Commercial
