2-Way Combustion Shut-Off Valves,Typical combustible media include natural gas and oil.

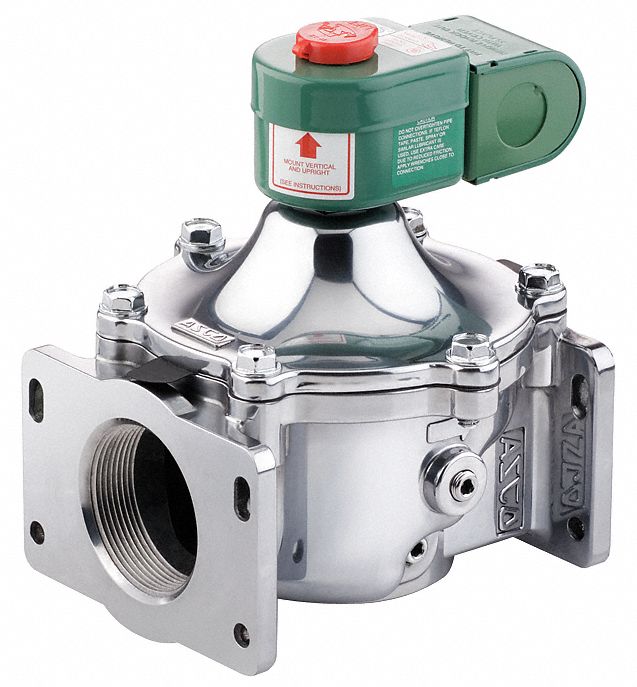

| Item | Fuel Gas Solenoid Valve with Test Port |
| Solenoid Valve Product Group | Fuel Gas Solenoid Valve with Test Port |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Fuel Gas |
| Pipe Size - Valves | 2 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 5 psi |
| Max. Operating Pressure Differential Water | 5 psi |
| Environmental Rating - Valves | Indoor, Outdoor |
| Voltage | 120V AC |
| Coefficient of Volume | 55 |
| Body Material - Valves | Aluminum |
| Coil Insulation Class | F |
| Seal Material - Valves | NBR |
| Max. Operating Pressure Differential | 5 psi |
| Orifice Dia. | 2 3/32 in |
| BtuH | 2,940,500 BtuH |
| Ambient Temp. Range | -40 Degrees to 125 Degrees F |
| Watts | 20 W |
| NEMA Rating | 1 |
| Coil Enclosure | General Purpose Junction Box |
| Electrical Connections | 1/2 in Conduit with 18 in Leads |
| Max. Fluid Temp. | 125 Degrees F |
| Hz | 50/60 |
| Overall Length | 6 3/8 in |
| Overall Width | 6 5/16 in |
| Overall Height | 7 5/8 in |
| Center Line Pipe Center Size | 5 7/8 in |
| Application | For On-Off Control of Fuel Gas in Commercial a |
