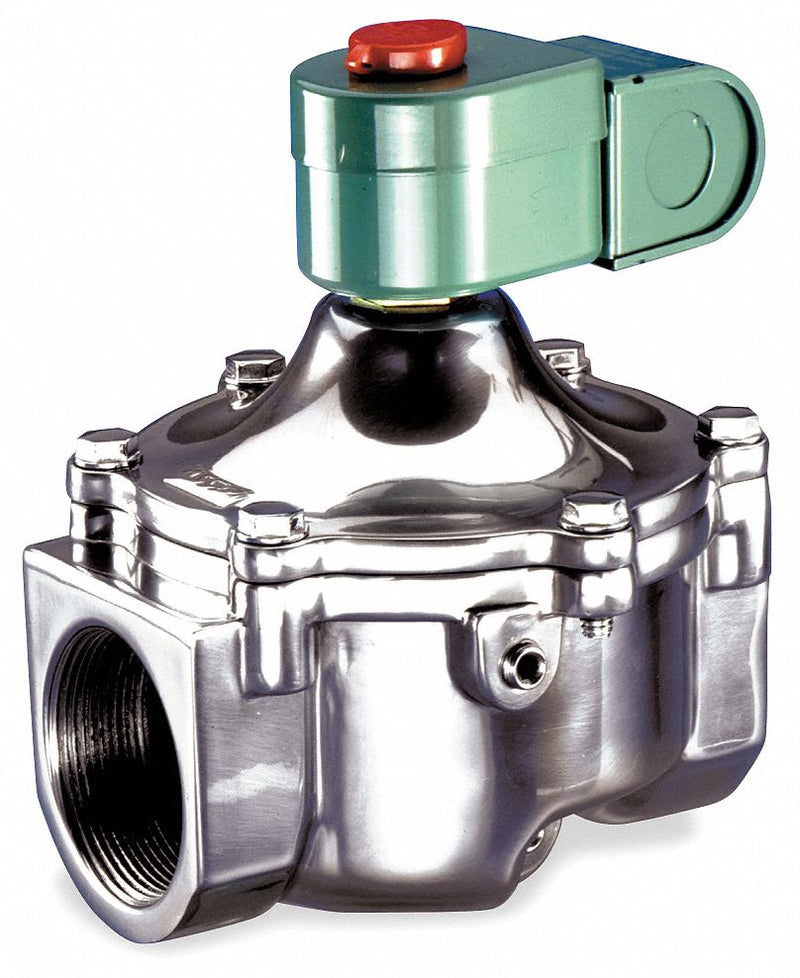

Redhat 2" Aluminum Air and Fuel Gas Solenoid Valve, Normally Closed - 8215B080CSA

RedhatSKU: C1935807
MPN : 8215B080CSA
Weight : 5.35 lb

filler

Price:
$818.82 $1,320.68

Availability : Usually Ships in 10 Business Days

2-Way Combustion Shut-Off Valves,Typical combustible media include natural gas and oil.

ItemAir and Fuel Gas Solenoid Valve
Solenoid Valve Product GroupAir and Fuel Gas Solenoid Valve
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesAir, Fuel Gas
Pipe Size - Valves2 in
Min. Operating Pressure Differential0 psi
Max. Operating Pressure Differential Air/Inert Gas25 psi
Max. Operating Pressure Differential Water25 psi
Environmental Rating - ValvesIndoor, Outdoor
Voltage120V AC
Coefficient of Volume60
Body Material - ValvesAluminum
Coil Insulation ClassF
Seal Material - ValvesNBR
Max. Operating Pressure Differential25 psi
Orifice Dia.2 3/32 in
BtuH3,251,000 BtuH
Ambient Temp. Range32 Degrees to 125 Degrees F
Watts15.4 W
NEMA Rating1
Coil EnclosureGeneral Purpose No Junction Box
Electrical Connections1/2 in Conduit with 18 in Leads
Max. Fluid Temp.125 Degrees F
Hz50/60
Overall Length6 3/32 in
Overall Width6 13/16 in
Overall Height7 13/32 in
Center Line Pipe Center Size5 29/32 in
ApplicationAir and Vacuum Service
StandardsCSA, UL
