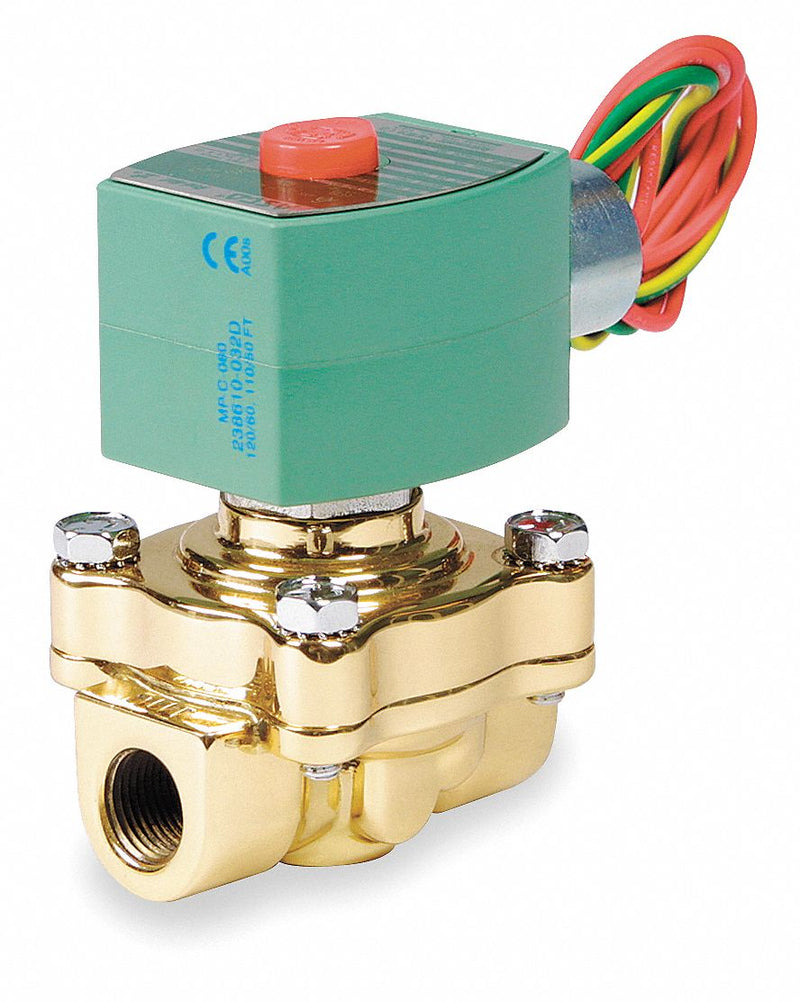

Valve is designed for high-temperature fluid applications involving steam or hot water. Has a brass body and includes a coil. Normally closed valve.
| Item | Hot Water Solenoid Valve |
| Solenoid Valve Product Group | Hot Water Solenoid Valve |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Hot Water |
| Pipe Size - Valves | 1/2 in |
| Min. Operating Pressure Differential | 5 psi |
| Max. Operating Pressure Differential Hot Water | 125 psi |
| Environmental Rating - Valves | Indoor, Outdoor |
| Voltage | 120V AC |
| Coefficient of Volume | 4 |
| Body Material - Valves | Brass |
| Coil Insulation Class | F |
| Orifice Dia. | 5/8 in |
| NEMA Rating | 1, 2, 3, 3S, 4, 4X |
| Max. Fluid Temp. Hot Water | 210 Degrees F |
| Coil Enclosure | Watertight No Junction Box |
| Max. Fluid Temp. Steam | Not Rated |
| Electrical Connections | 1/2 in Conduit w/18 in Leads |
| Watts | 6.1 W |
| Hz | 60/50 |
| Overall Length | 2 3/4 in |
| Overall Width | 2 9/32 in |
| Overall Height | 3 3/8 in |
| Center Line Pipe Center Size | 2 13/16 in |
