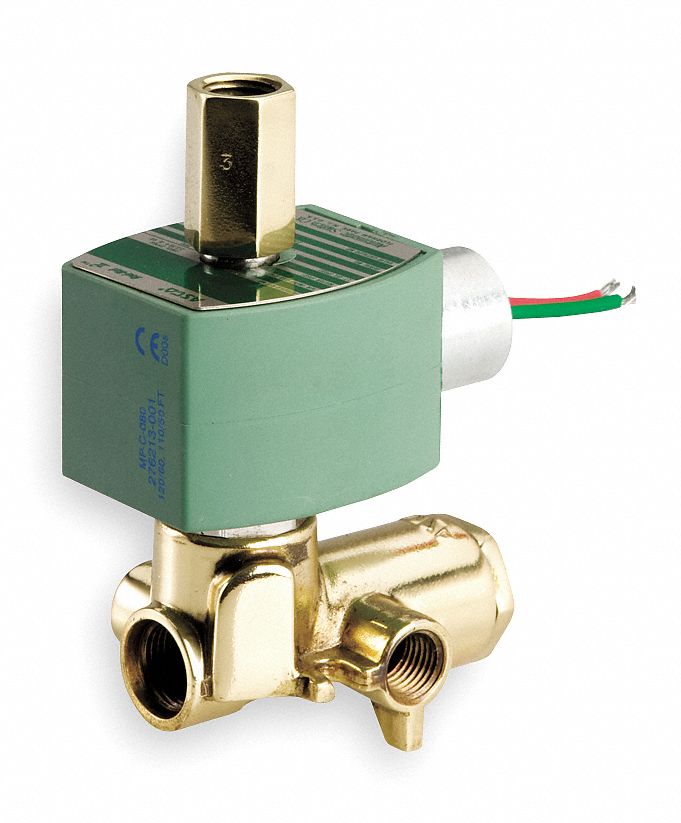

This REDHAT solenoid valve has 4 pipe connections, 1 pressure inlet, and 2 cylinder ports that provide pressure to a double-acting cylinder or actuator. A single outlet exhausts pressure from the cylinders.,Inline configuration,Single solenoid operation
| Item | Solenoid Valve |
| Solenoid Valve Product Group | Solenoid Valve |
| Valve Ways and Positions | 4-Way/2-Position |
| Media - Valves | Air, Inert Gases |
| Pipe Size - Valves | 1/4 in |
| Min. Operating Pressure Differential | 10 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 150 psi |
| Max. Operating Pressure Differential Light Oil | Not Rated |
| Environmental Rating - Valves | Explosion Proof, Indoor, Outdoor |
| Voltage | 120V AC |
| Coefficient of Volume | 0.09 |
| Body Material - Valves | Brass |
| Coil Insulation Class | F |
| Seal Material - Valves | NBR |
| Orifice Dia. | 1/16 in |
| NEMA Rating | 3, 3S, 4, 4X, 6, 6P, 7, 9 |
| Max. Fluid Temp. | 180 Degrees F |
| Hz | 60 |
| Watts | 10.1 W |
| Coil Enclosure | Explosionproof and Watertight |
| Electrical Connections | 1/2 in Conduit w/18 in Leads |
| Overall Length | 3 in |
| Overall Width | 2 1/16 in |
| Overall Height | 4 11/16 in |
| Center Line Pipe Center Size | 4 in |
