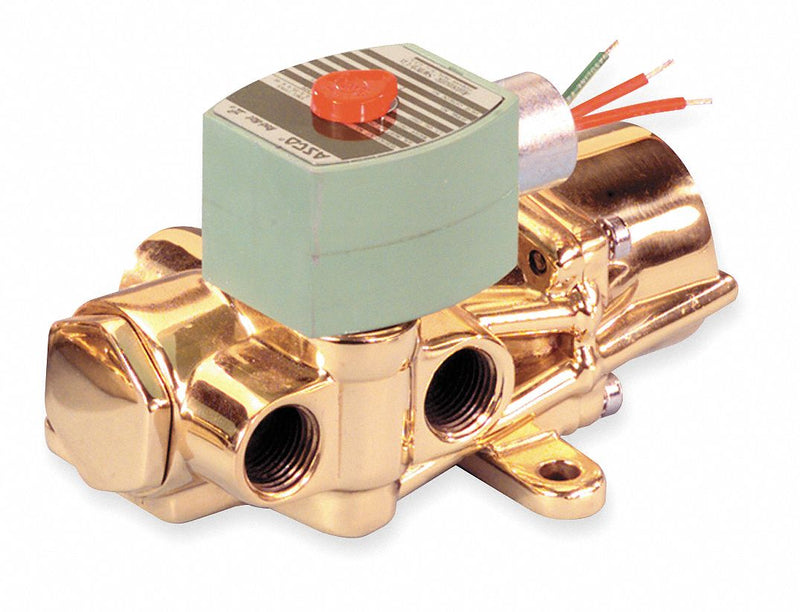

This solenoid valve features a manual operator. It is suitable for use with air, inert gases, light oil, and water. It is rated for indoor and outdoor installation.
| Item | Solenoid Valve with Manual Operator |
| Solenoid Valve Product Group | Solenoid Valve with Manual Operator |
| Valve Ways and Positions | 4-Way/2-Position |
| Media - Valves | Air, Inert Gases, Light Oil, Water |
| Pipe Size - Valves | 1/4 in |
| Min. Operating Pressure Differential | 10 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 150 psi |
| Max. Operating Pressure Differential Light Oil | 125 psi |
| Max. Operating Pressure Differential Water | 150 psi |
| Environmental Rating - Valves | Indoor, Outdoor |
| Voltage | 120V AC |
| Coefficient of Volume | 0.8 |
| Body Material - Valves | Brass |
| Coil Insulation Class | F |
| Seal Material - Valves | NBR |
| Orifice Dia. | 1/4 in |
| NEMA Rating | 1, 2, 3, 3S, 4, 4X |
| IP Rating | 66 |
| Max. Fluid Temp. | 180 Degrees F |
| Hz | 50/60 |
| Watts | 10.1 W |
| Coil Enclosure | Watertight No Junction Box |
| Electrical Connections | 1/2 in Conduit w/18 in Leads |
| Overall Length | 4 3/4 in |
| Overall Width | 3 1/8 in |
| Overall Height | 4 1/8 in |
| Center Line Pipe Center Size | 2 3/16 in |
