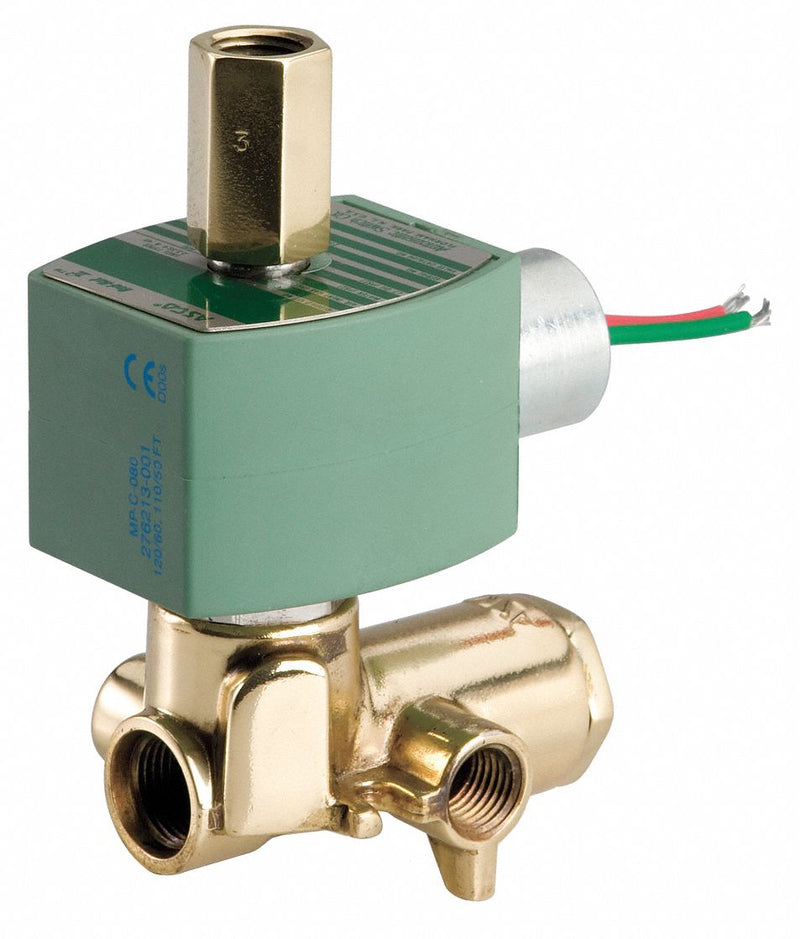

Redhat 120V AC Brass Solenoid Valve with Manual Operator, 1/4" Pipe Size - EF8345G001MO120/60 110/50DA

RedhatSKU: C1935573
MPN : EF8345G001MO120/60 110/50DA
Weight : 2.3 lb


$693.24 $1,118.13

Availability : Usually Ships in 7-10 Business Days

This solenoid valve features a manual operator. It is suitable for use with air, inert gases, light oil, and water. It is rated for indoor and outdoor installation.

ItemSolenoid Valve with Manual Operator
Solenoid Valve Product GroupSolenoid Valve with Manual Operator
Valve Ways and Positions4-Way/2-Position
Media - ValvesAir, Inert Gases, Light Oil, Water
Pipe Size - Valves1/4 in
Min. Operating Pressure Differential10 psi
Max. Operating Pressure Differential Air/Inert Gas150 psi
Max. Operating Pressure Differential Light Oil150 psi
Max. Operating Pressure Differential Water150 psi
Environmental Rating - ValvesExplosion Proof, Indoor, Outdoor
Voltage120V AC
Coefficient of Volume0.09
Body Material - ValvesBrass
Coil Insulation ClassF
Seal Material - ValvesNBR
Orifice Dia.1/16 in
NEMA Rating3, 3S, 4, 4X, 6, 6P, 7, 9
Max. Fluid Temp.180 Degrees F
Watts10.1 W
Coil EnclosureExplosionproof and Watertight
Electrical Connections1/2 in Conduit w/18 in Leads
Overall Length3 in
Overall Width2 1/2 in
Overall Height4 11/16 in
Center Line Pipe Center Size2 in
