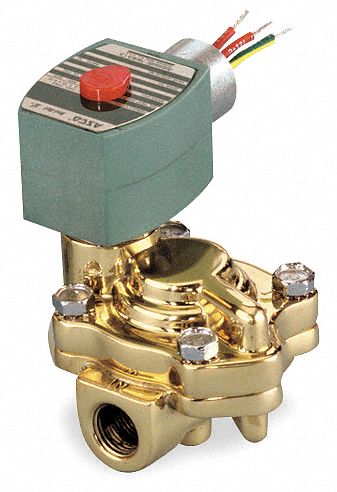

Redhat 120V AC Brass Slow Closing Solenoid Valve, Normally Closed, 1-1/2" Pipe Size - 8221G011

RedhatSKU: C1935631
MPN : 8221G011
Weight : 5.0 lb
filler

Price:
$1,134.21 $1,383.18

Availability : Quick Ship - Usually Delivered in 2 Business Days

This slow-closing solenoid valve is designed to help reduce pressure spikes and bring water hammers to a level that eliminates the need for suppressors or other controls. Coil included.

ItemSlow Closing Solenoid Valve
Solenoid Valve Product GroupSlow Closing Solenoid Valve
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesWater
Pipe Size - Valves1 1/2 in
Min. Operating Pressure Differential5 psi
Max. Operating Pressure Differential Light OilNot Rated
Max. Operating Pressure Differential Water150 psi
Environmental Rating - ValvesIndoor, Outdoor
Voltage120V AC
Coefficient of Volume24
Body Material - ValvesBrass
Coil Insulation ClassF
Seal Material - ValvesNBR
Orifice Dia.1 1/4 in
NEMA Rating1, 2, 3, 3S, 4, 4X
IP Rating66
Max. Fluid Temp.180 Degrees F
Hz50/60
Watts6.1 W
Coil EnclosureWatertight No Junction Box
Electrical Connections1/2 in Conduit w/18 in Leads
Overall Length4 3/8 in
Overall Width4 1/8 in
Overall Height6 1/8 in
Center Line Pipe Center Size4 3/16 in
ApplicationTo Protect Against the Water Hammer Problems Experienced in Many Water and Light Oil Applications
