Availability : Usually Ships in 10 Business Days

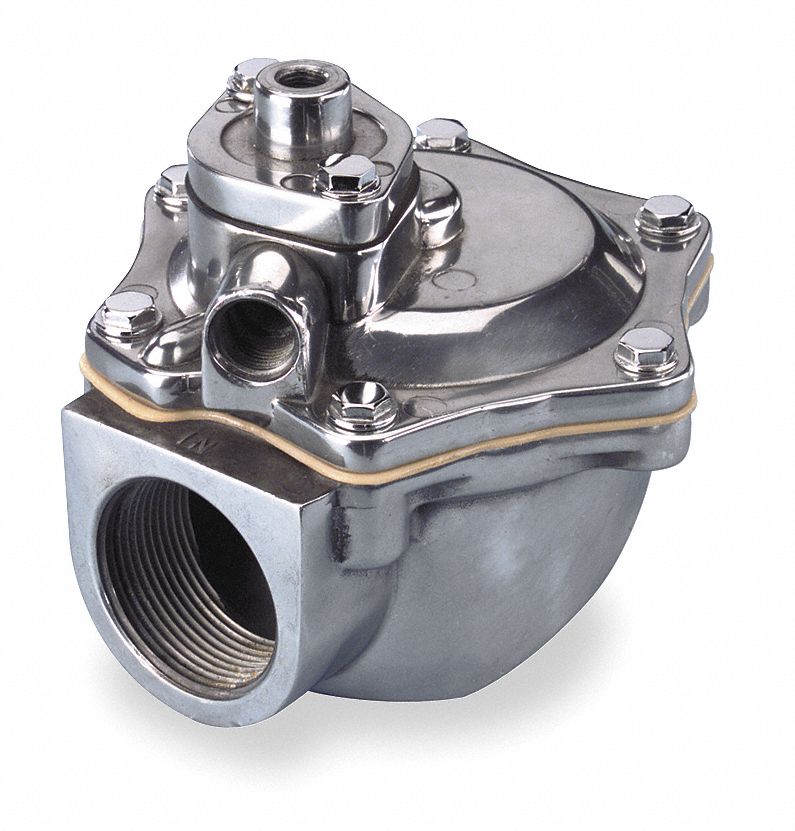

Specially designed for reverse jet-type dust collector systems, this REDHAT dust collector solenoid valve has a high cycle life and a watertight-type molded epoxy solenoid coil with 1/2" conduit hub., High flow for effective bag cleaning,Fast opening/closing
Item | Dust Collector Solenoid Valve |
Solenoid Valve Product Group | Dust Collector Solenoid Valve |
Valve Ways and Positions | 2-Way/2-Position |
Valve Configuration | Normally Closed |
Media - Valves | Air, Inert Gases |
Pipe Size - Valves | 1 1/2 in |
Min. Operating Pressure Differential | 5 psi |
Max. Operating Pressure Differential Air/Inert Gas | 125 psi |
Max. Operating Pressure Differential Light Oil | Not Rated |
Environmental Rating - Valves | Indoor, Outdoor |
Voltage | 120V AC |
Coefficient of Volume | 53 |
Body Material - Valves | Aluminum |
Coil Insulation Class | F |
Seal Material - Valves | NBR |
Orifice Dia. | 2 in |
NEMA Rating | 1, 2, 3, 3S, 4, 4X |
IP Rating | 66 |
Max. Fluid Temp. | 150 Degrees F |
Hz | 60 |
Watts | 10.1 W |
Coil Enclosure | Watertight No Junction Box |
Electrical Connections | 1/2 in Conduit w/18 in Leads |
Overall Length | 5 3/16 in |
Overall Width | 3 in |
Overall Height | 4 1/2 in |
Center Line Pipe Center Size | 2 13/16 in |
