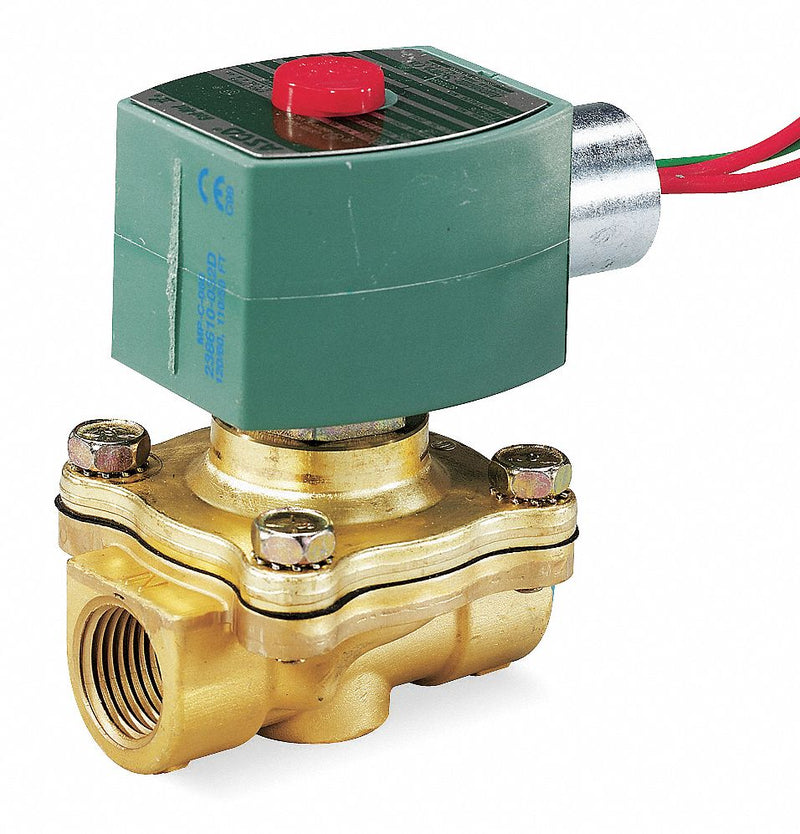

Redhat 120V AC Brass Solenoid Valve, Normally Closed, 1/2" Pipe Size - 8210G094

RedhatSKU: C1935622
MPN : 8210G094
Weight : 2.2 lb
filler

Price:
$173.37 $211.43

Availability : Quick Ship - Usually Delivered in 2 Business Days

This Red Hat solenoid valve is a 1-pc. molded epoxy coil enclosure with built-in 1/2" NPT conduit hub with strain relief. Ideal for use in high-flow valves for liquid, corrosive, and air/inert gas service applications, including air compressors, pumps, and industrial water control.

ItemSolenoid Valve
Solenoid Valve Product GroupSolenoid Valve
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesAir, Inert Gases, Water
Pipe Size - Valves1/2 in
Min. Operating Pressure Differential0 psi
Max. Operating Pressure Differential Air/Inert Gas150 psi
Max. Operating Pressure Differential Light OilNot Rated
Max. Operating Pressure Differential Water150 psi
Environmental Rating - ValvesIndoor, Outdoor
Voltage120V AC
Coefficient of Volume4
Body Material - ValvesBrass
Coil Insulation ClassF
Seal Material - ValvesNBR
Orifice Dia.5/8 in
NEMA Rating1, 2, 3, 3S, 4, 4X
IP Rating66
Max. Fluid Temp.180 Degrees F
Hz60
Watts10.1 W
Coil EnclosureWatertight No Junction Box
Electrical Connections1/2 in Conduit w/18 in Leads
Overall Length2 3/4 in
Overall Width2 5/16 in
Overall Height3 15/16 in
Center Line Pipe Center Size3 3/8 in
ApplicationAir Compressors, Car Wash, Industrial Water Control, Laundry Equipment, Pumps
