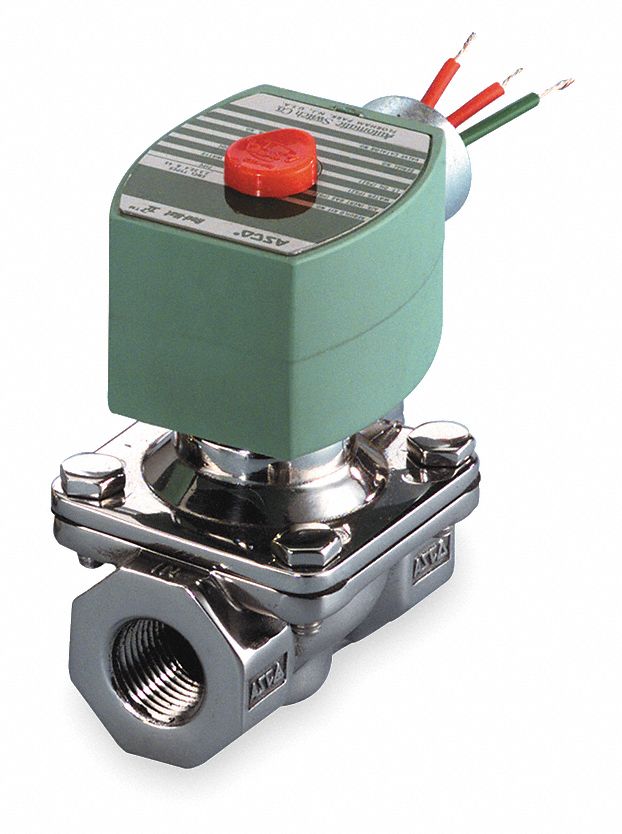

This general service, normally closed REDHAT solenoid valve features resilient materials for long life and low internal leakage. Model opens when energized and closes when de-energized.,Provides a high-flow level,1 inlet port and 1 outlet port
| Item | Solenoid Valve |
| Solenoid Valve Product Group | Solenoid Valve |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Air, Inert Gases, Light Oil, Water |
| Pipe Size - Valves | 1/2 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 150 psi |
| Max. Operating Pressure Differential Light Oil | 125 psi |
| Max. Operating Pressure Differential Water | 150 psi |
| Environmental Rating - Valves | Explosion Proof, Indoor, Outdoor |
| Voltage | 120V AC |
| Coefficient of Volume | 4 |
| Body Material - Valves | Stainless Steel |
| Coil Insulation Class | F |
| Seal Material - Valves | NBR |
| Orifice Dia. | 5/8 in |
| NEMA Rating | 3, 4, 4X, 7, 9 |
| Max. Fluid Temp. | 175 Degrees F |
| Hz | 60 |
| Watts | 17.1 W |
| Coil Enclosure | Explosionproof and Watertight |
| Electrical Connections | 1/2 in Conduit w/18 in Leads |
| Overall Length | 2 13/16 in |
| Overall Width | 2 5/16 in |
| Overall Height | 4 3/16 in |
| Center Line Pipe Center Size | 3 7/16 in |
| Application | Air Compressors, Car Wash, Industrial Water Control, Laundry Equipment, Pumps |
