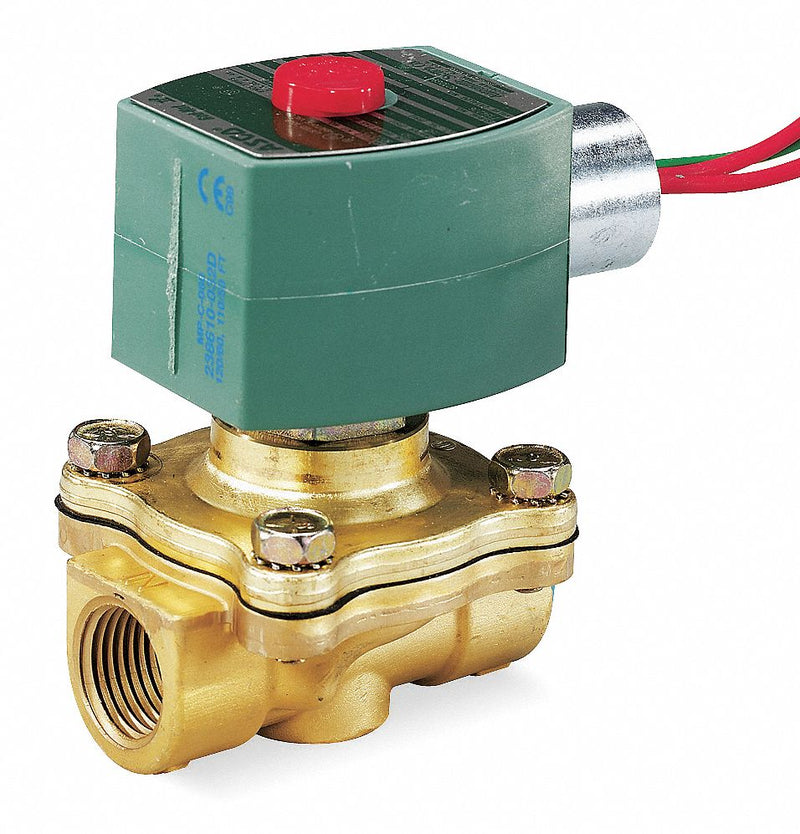

Redhat 24V AC Brass Solenoid Valve, Normally Closed, 1/2" Pipe Size - 8210G094

RedhatSKU: C1935588
MPN : 8210G094
Weight : 2.2 lb

filler

Price:
$207.10 $334.03

Availability : Usually Ships in 10 Business Days

This solenoid valve is suitable for liquid, corrosive, and air/inert gas service in applications such as car washes, air compressors, pumps, laundry equipment, and industrial water control. Normally closed valves open when energized.

ItemSolenoid Valve
Solenoid Valve Product GroupSolenoid Valve
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesAir, Inert Gases, Water
Pipe Size - Valves1/2 in
Min. Operating Pressure Differential0 psi
Max. Operating Pressure Differential Air/Inert Gas150 psi
Max. Operating Pressure Differential Light OilNot Rated
Max. Operating Pressure Differential Water150 psi
Environmental Rating - ValvesIndoor, Outdoor
Voltage24V AC
Coefficient of Volume4
Body Material - ValvesBrass
Coil Insulation ClassF
Seal Material - ValvesNBR
Orifice Dia.5/8 in
NEMA Rating1, 2, 3, 3S, 4, 4X
IP Rating66
Max. Fluid Temp.180 Degrees F
Hz60
Watts10.1 W
Coil EnclosureWatertight No Junction Box
Electrical Connections1/2 in Conduit w/18 in Leads
Overall Length2 3/4 in
Overall Width2 5/16 in
Overall Height3 15/16 in
Center Line Pipe Center Size2 5/16 in
ApplicationAir Compressors, Car Wash, Industrial Water Control, Laundry Equipment, Pumps
