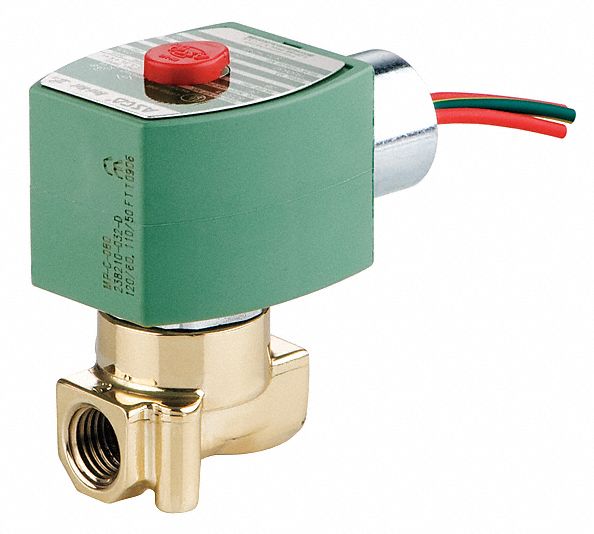

This solenoid valve is suitable for liquid, corrosive, and air/inert gas service applications, including car washes, air compressors, pumps, laundry equipment, and industrial water control.
| Item | Solenoid Valve |
| Solenoid Valve Product Group | Solenoid Valve |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Open |
| Media - Valves | Air, Inert Gases, Light Oil, Water |
| Pipe Size - Valves | 1/4 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 650 psi |
| Max. Operating Pressure Differential Light Oil | 400 psi |
| Max. Operating Pressure Differential Water | 650 psi |
| Environmental Rating - Valves | Indoor, Outdoor |
| Voltage | 24V DC |
| Coefficient of Volume | 0.06 |
| Body Material - Valves | Brass |
| Coil Insulation Class | H |
| Seal Material - Valves | NBR |
| Orifice Dia. | 3/64 in |
| NEMA Rating | 1, 2, 3, 3S, 4, 4X |
| IP Rating | 66 |
| Max. Fluid Temp. | 180 Degrees F |
| Watts | 11.6 W |
| Coil Enclosure | Watertight No Junction Box |
| Electrical Connections | 1/2 in Conduit w/18 in Leads |
| Overall Length | 1 9/16 in |
| Overall Width | 2 1/16 in |
| Overall Height | 3 1/8 in |
| Center Line Pipe Center Size | 2 1/2 in |
