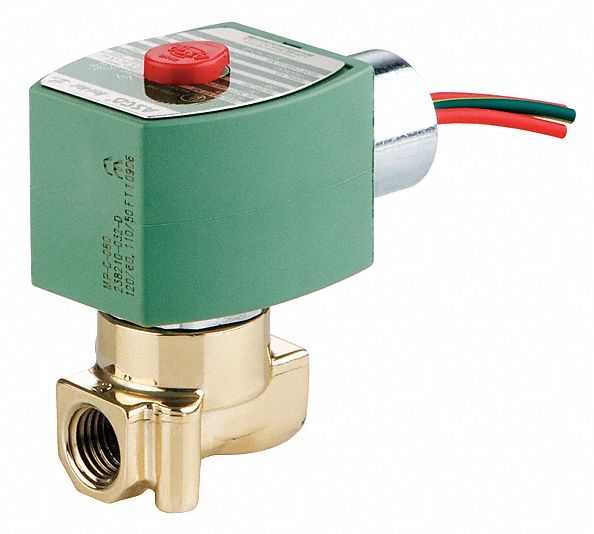

Redhat 120V AC Brass Solenoid Valve, Normally Closed, 1/8" Pipe Size - 8262H002

RedhatSKU: C1935691
MPN : 8262H002
Weight : 1.03 lb
filler

Price:
$70.03 $85.40

Availability : Quick Ship - Usually Delivered in 2 Business Days

This solenoid valve is suitable for for liquid, corrosive, and air/inert gas service in applications such as car washes, air compressors, pumps, laundry equipment, and industrial water control.

ItemSolenoid Valve
Solenoid Valve Product GroupSolenoid Valve
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesAir, Inert Gases, Light Oil, Water
Pipe Size - Valves1/8 in
Min. Operating Pressure Differential0 psi
Max. Operating Pressure Differential Air/Inert Gas185 psi
Max. Operating Pressure Differential Light Oil120 psi
Max. Operating Pressure Differential Water180 psi
Environmental Rating - ValvesIndoor, Outdoor
Voltage120V AC
Coefficient of Volume0.35
Body Material - ValvesBrass
Coil Insulation ClassF
Seal Material - ValvesNBR
Orifice Dia.1/8 in
NEMA Rating1, 2, 3, 3S, 4, 4X
IP Rating66
Max. Fluid Temp.180 Degrees F
Hz60
Watts6.1 W
Coil EnclosureWatertight No Junction Box
Electrical Connections1/2 in Conduit w/18 in Leads
Overall Length2 7/8 in
Overall Width1 11/16 in
Overall Height2 7/8 in
Center Line Pipe Center Size2 1/2 in
