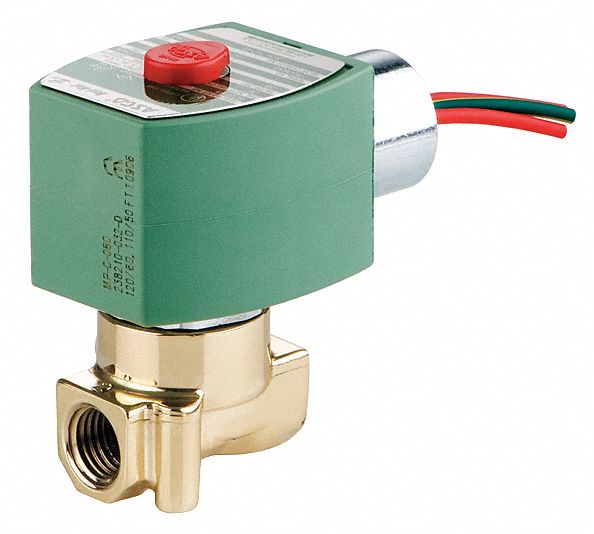

Redhat 120V AC Brass Solenoid Valve, Normally Closed, 1/8" Pipe Size - 8262H014

RedhatSKU: C1935694
MPN : 8262H014
Weight : 0.41 lb
filler

Price:
$71.18 $86.80

Availability : Usually Ships in 7-10 Business Days

This solenoid valve is suitable for for liquid, corrosive, and air/inert gas service in applications such as car washes, air compressors, pumps, laundry equipment, and industrial water control.

ItemSolenoid Valve
Solenoid Valve Product GroupSolenoid Valve
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesAir, Inert Gases, Light Oil, Water
Pipe Size - Valves1/8 in
Min. Operating Pressure Differential0 psi
Max. Operating Pressure Differential Air/Inert Gas370 psi
Max. Operating Pressure Differential Light Oil190 psi
Max. Operating Pressure Differential Water330 psi
Environmental Rating - ValvesIndoor, Outdoor
Voltage120V AC
Coefficient of Volume0.21
Body Material - ValvesBrass
Coil Insulation ClassF
Seal Material - ValvesNBR
Orifice Dia.3/32 in
NEMA Rating1, 2, 3, 3S, 4, 4X
IP Rating66
Max. Fluid Temp.180 Degrees F
Hz60
Watts6.1 W
Coil EnclosureWatertight No Junction Box
Electrical Connections1/2 in Conduit w/18 in Leads
Overall Length1 3/16 in
Overall Width1 11/16 in
Overall Height2 7/8 in
Center Line Pipe Center Size2 1/2 in
