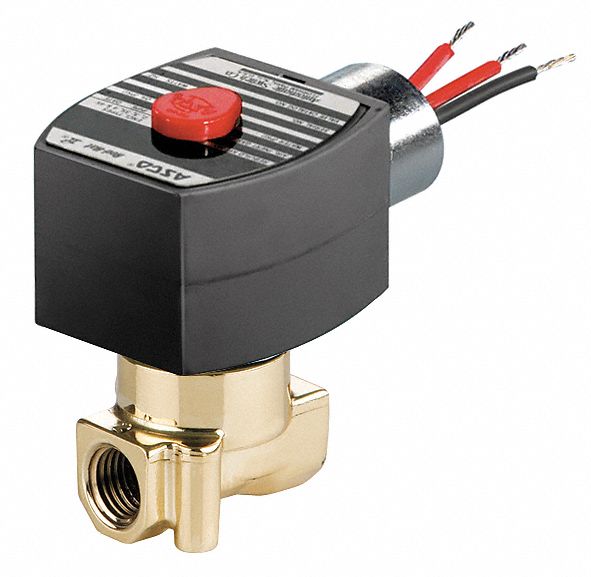

This general service, normally closed RED HAT solenoid valve opens when energized and closes when de-energized.,Provides a high-flow level,1 inlet port and 1 outlet port
| Item | Solenoid Valve |
| Solenoid Valve Product Group | Solenoid Valve |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Air, Inert Gases, Light Oil, Water |
| Pipe Size - Valves | 1/8 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 370 psi |
| Max. Operating Pressure Differential Light Oil | 190 psi |
| Max. Operating Pressure Differential Water | 330 psi |
| Environmental Rating - Valves | Indoor, Outdoor |
| Voltage | 120V AC |
| Coefficient of Volume | 0.21 |
| Body Material - Valves | Brass |
| Coil Insulation Class | F |
| Seal Material - Valves | NBR |
| Orifice Dia. | 3/32 in |
| NEMA Rating | 3, 3S, 4, 4X, 6, 6P, 7, 9 |
| Max. Fluid Temp. | 180 Degrees F |
| Hz | 60 |
| Watts | 6.1 W |
| Coil Enclosure | Explosionproof and Watertight |
| Electrical Connections | 1/2 in Conduit w/18 in Leads |
| Overall Length | 1 3/16 in |
| Overall Width | 1 11/16 in |
| Overall Height | 2 7/8 in |
| Center Line Pipe Center Size | 2 1/2 in |
