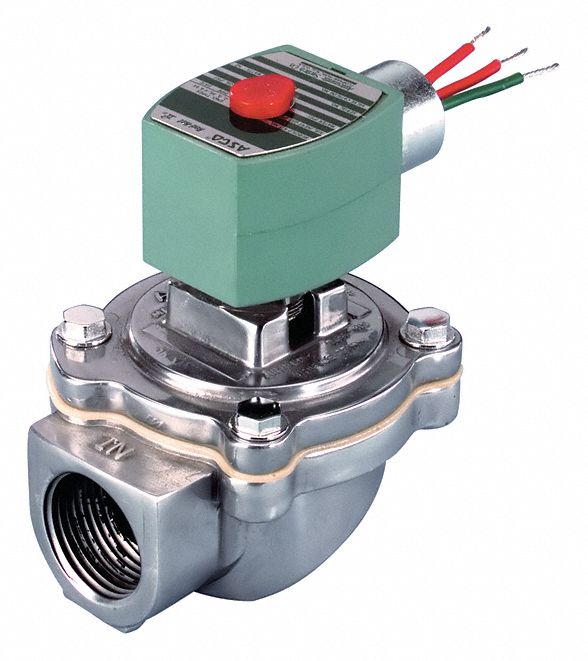

Specially designed for reverse jet-type dust collector systems, this REDHAT dust collector solenoid valve has a high cycle life and a watertight-type molded epoxy solenoid coil with 1/2" conduit hub., High flow for effective bag cleaning,Fast opening/closing
| Item | Dust Collector Solenoid Valve |
| Solenoid Valve Product Group | Dust Collector Solenoid Valve |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Air, Inert Gases |
| Pipe Size - Valves | 1 in |
| Min. Operating Pressure Differential | 5 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 125 psi |
| Max. Operating Pressure Differential Light Oil | Not Rated |
| Environmental Rating - Valves | Indoor, Outdoor |
| Voltage | 120V AC |
| Coefficient of Volume | 20 |
| Body Material - Valves | Aluminum |
| Coil Insulation Class | F |
| Seal Material - Valves | NBR |
| Orifice Dia. | 1 1/8 in |
| NEMA Rating | 1, 2, 3, 3S, 4, and 4X |
| Max. Fluid Temp. | 185 Degrees F |
| Hz | 60 |
| Watts | 6.1 W |
| Coil Enclosure | Watertight No Junction Box |
| Electrical Connections | 1/2 in Conduit w/18 in Leads |
| Overall Length | 3 15/16 in |
| Overall Width | 3 in |
| Overall Height | 4 1/2 in |
| Center Line Pipe Center Size | 2 13/16 in |
| Application | Specially Designed for Reverse Jet-Type Dust Collector Systems. |
