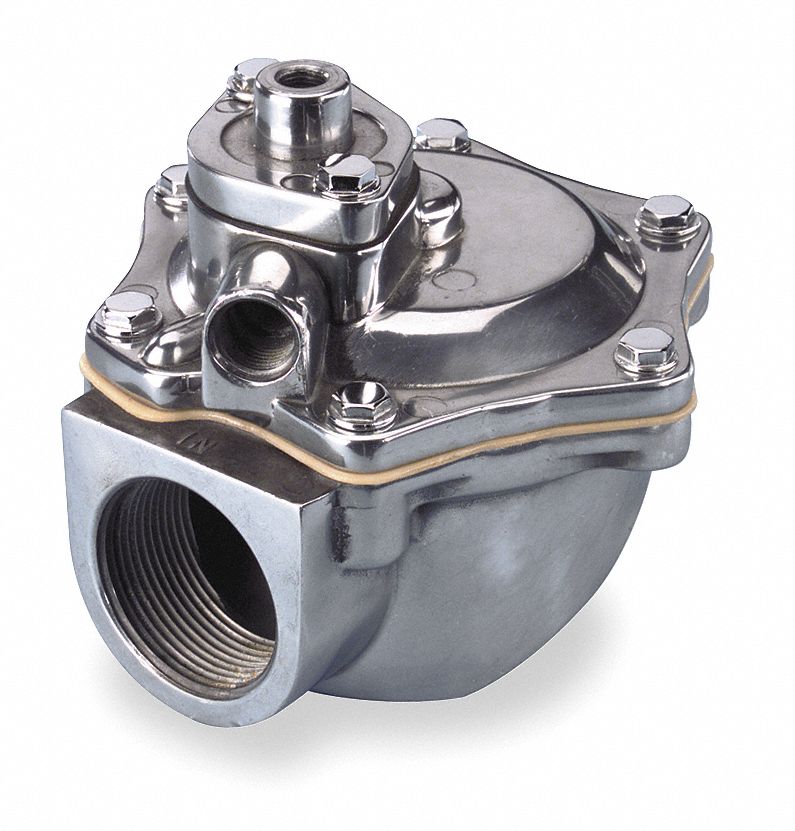

Specially designed for reverse jet-type dust collector systems, this REDHAT remote piloted dust collector valve features a high cycle life. Model requires a separate solenoid valve.,High flow for effective bag cleaning,Fast opening/closing
| Item | Remote Piloted Dust Collector Valve |
| Solenoid Valve Product Group | Remote Piloted Dust Collector Valve |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Air, Inert Gases |
| Pipe Size - Valves | 1 in |
| Min. Operating Pressure Differential | 5 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 125 psi |
| Max. Operating Pressure Differential Light Oil | Not Rated |
| Environmental Rating - Valves | Indoor, Outdoor |
| Coefficient of Volume | 20 |
| Body Material - Valves | Aluminum |
| Seal Material - Valves | NBR |
| Orifice Dia. | 1 1/8 in |
| Max. Fluid Temp. | 185 Degrees F |
| Overall Length | 2 in |
| Overall Width | 3 in |
| Overall Height | 2 1/2 in |
| Center Line Pipe Center Size | 1 5/16 in |
| Application | Specially Designed for Reverse Jet-Type Dust Collector Systems. Solenoid Valve Sold Separately. |
