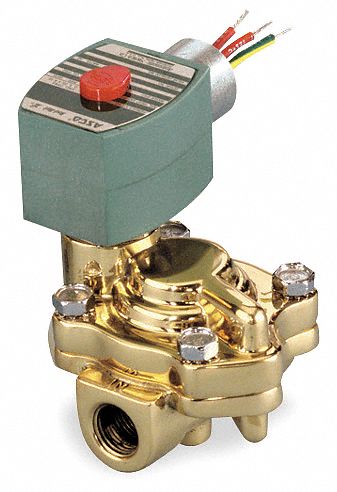

This Red Hat solenoid valve helps reduce pressure spike and brings the water hammer to a level that eliminates the need for suppressors or other controls.
| Item | Slow Closing Solenoid Valve |
| Solenoid Valve Product Group | Slow Closing Solenoid Valve |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Water |
| Pipe Size - Valves | 1 in |
| Min. Operating Pressure Differential | 5 psi |
| Max. Operating Pressure Differential Light Oil | Not Rated |
| Max. Operating Pressure Differential Water | 150 psi |
| Environmental Rating - Valves | Indoor, Outdoor |
| Voltage | 120V AC |
| Coefficient of Volume | 11.5 |
| Body Material - Valves | Brass |
| Coil Insulation Class | F |
| Seal Material - Valves | NBR |
| Orifice Dia. | 1 in |
| NEMA Rating | 1, 2, 3, 3S, 4, 4X |
| IP Rating | 66 |
| Max. Fluid Temp. | 180 Degrees F |
| Hz | 50/60 |
| Watts | 6.1 W |
| Coil Enclosure | Watertight No Junction Box |
| Electrical Connections | 1/2 in Conduit w/18 in Leads |
| Overall Length | 3 3/4 in |
| Overall Width | 3 3/16 in |
| Overall Height | 5 5/8 in |
| Center Line Pipe Center Size | 4 in |
| Application | To Protect Against the Water Hammer Problems Experienced in Many Water and Light Oil Applications |
