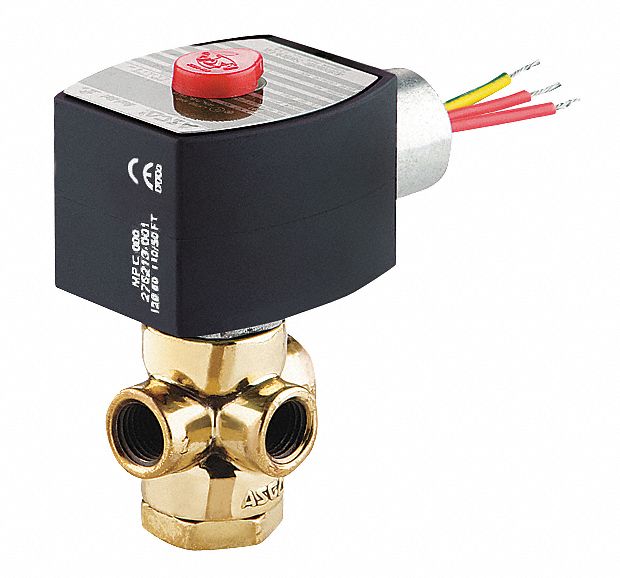

Redhat 120V AC Brass Solenoid Valve with Manual Operator, Normally Closed, 1/4" Pipe Size - 8320G184MS

RedhatSKU: C1935652
MPN : 8320G184MS
Weight : 1.65 lb
filler

Price:
$212.23 $258.82

Availability : Quick Ship - Usually Delivered in 2 Business Days

This solenoid valve features a manual operator and a normally closed valve configuration. It is ideal for use with air, inert gases, light oil, and water, and is rated for indoor or outdoor work environments. It features 3 pipe connections and 2 orifices that alternately apply pressure to and exhaust pressure from valve actuators and single-acting cylinders.

ItemSolenoid Valve with Manual Operator
Solenoid Valve Product GroupSolenoid Valve with Manual Operator
Valve Ways and Positions3-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesAir, Inert Gases, Light Oil, Water
Pipe Size - Valves1/4 in
Min. Operating Pressure Differential0 psi
Max. Operating Pressure Differential Air/Inert Gas150 psi
Max. Operating Pressure Differential Light Oil150 psi
Max. Operating Pressure Differential Water150 psi
Environmental Rating - ValvesIndoor, Outdoor
Voltage120V AC
Coefficient of Volume0.12
Body Material - ValvesBrass
Coil Insulation ClassF
Seal Material - ValvesNBR
Orifice Dia.3/32 in
NEMA Rating1, 2, 3, 3S, 4, 4X
IP Rating66
Max. Fluid Temp.200 Degrees F
Hz50/60
Watts10.1 W
Coil EnclosureWatertight No Junction Box
Electrical Connections1/2 in Conduit w/18 in Leads
Overall Length1 11/16 in
Overall Width1 7/16 in
Overall Height3 3/4 in
Center Line Pipe Center Size1 3/4 in
