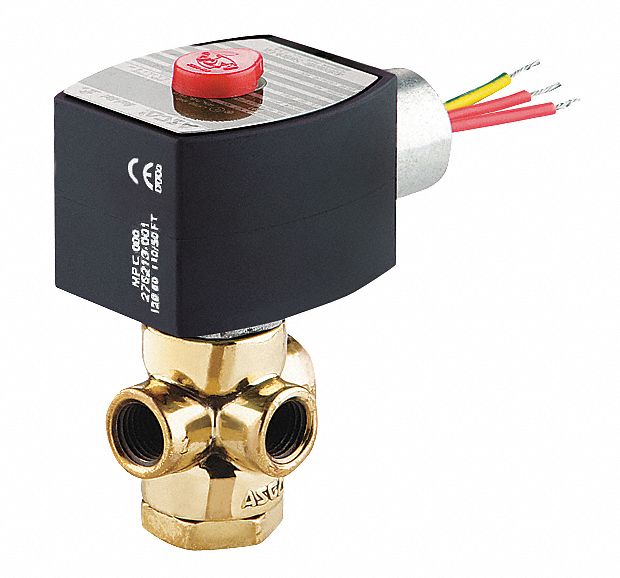

Redhat 120V AC Stainless Steel Solenoid Valve, Normally Closed, 1/4" Pipe Size - EF8320G203

RedhatSKU: C1935667
MPN : EF8320G203
Weight : 1.75 lb
filler

Price:
$332.65 $405.67

Availability : Usually Ships in 7-10 Business Days

Ideal for the control of air, water, light oil, and non-corrosive media, this REDHAT solenoid valve features 3 ports and 2 orifices. When 1 orifice is open the other is closed., General service,Pressure to the cylinder port when valve is energized

ItemSolenoid Valve
Solenoid Valve Product GroupSolenoid Valve
Valve Ways and Positions3-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesAir, Inert Gases, Light Oil, Water
Pipe Size - Valves1/4 in
Min. Operating Pressure Differential0 psi
Max. Operating Pressure Differential Air/Inert Gas85 psi
Max. Operating Pressure Differential Light Oil85 psi
Max. Operating Pressure Differential Water85 psi
Environmental Rating - ValvesExplosion Proof, Indoor, Outdoor
Voltage120V AC
Coefficient of Volume0.25
Body Material - ValvesStainless Steel
Coil Insulation ClassF
Seal Material - ValvesNBR
Orifice Dia.1/8 in
NEMA Rating3, 3S, 4, 4X, 6, 6P, 7, 9
Max. Fluid Temp.200 Degrees F
Hz50/60
Watts10.1 W
Coil EnclosureExplosionproof and Watertight
Electrical Connections1/2 in Conduit w/18 in Leads
Overall Length1 7/16 in
Overall Width1 7/16 in
Overall Height3 3/4 in
Center Line Pipe Center Size1 3/4 in
