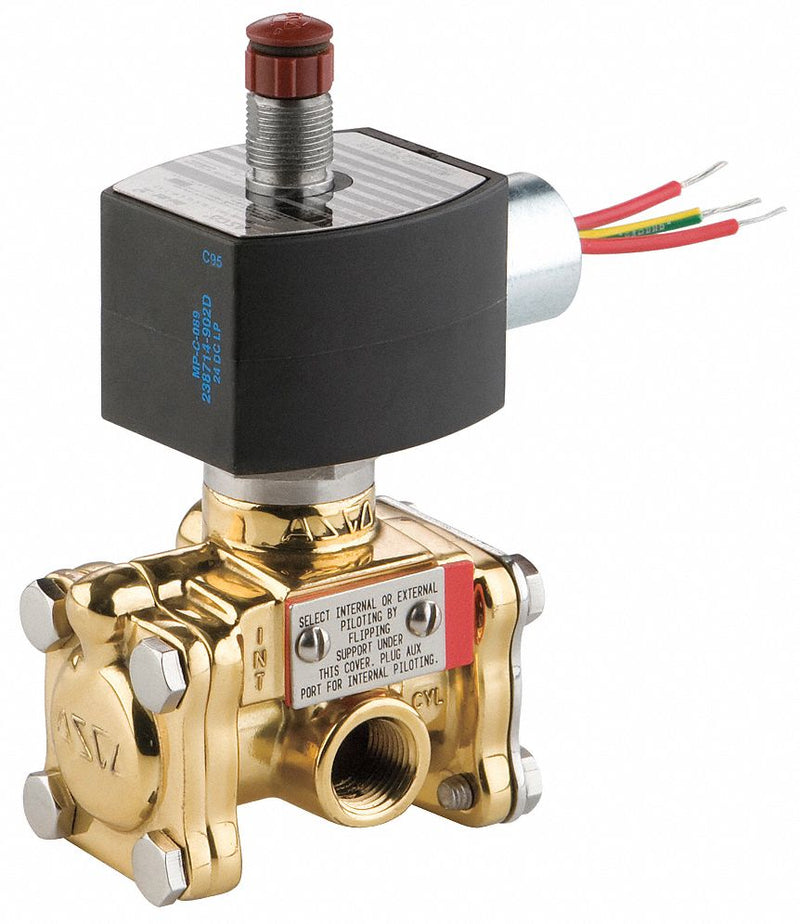

This solenoid valve features normally closed valve configuration and is ideal for use with air and inert gases. Use in indoor and outdoor work environments. Features 3 pipe connections and 2 orifices that alternately apply pressure to, and exhaust pressure from valve actuators and single-acting cylinders.
| Item | Solenoid Valve |
| Solenoid Valve Product Group | Solenoid Valve |
| Valve Ways and Positions | 3-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Air, Inert Gases |
| Pipe Size - Valves | 1/4 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 130 psi |
| Max. Operating Pressure Differential Light Oil | Not Rated |
| Environmental Rating - Valves | Indoor, Outdoor |
| Voltage | 24V DC |
| Coefficient of Volume | 1.5 |
| Body Material - Valves | 316 Stainless Steel |
| Coil Insulation Class | F |
| Seal Material - Valves | FKM |
| Orifice Dia. | 5/16 in |
| NEMA Rating | 3, 3S, 4, 4X, 6, 6P, 7, 9 |
| Max. Fluid Temp. | 130 Degrees F |
| Watts | 0.55 W |
| Coil Enclosure | Explosionproof and Watertight |
| Electrical Connections | 1/2 in Conduit w/18 in Leads |
| Overall Length | 2 1/8 in |
| Overall Width | 3 5/16 in |
| Overall Height | 5 11/16 in |
| Center Line Pipe Center Size | 2 13/16 in |
