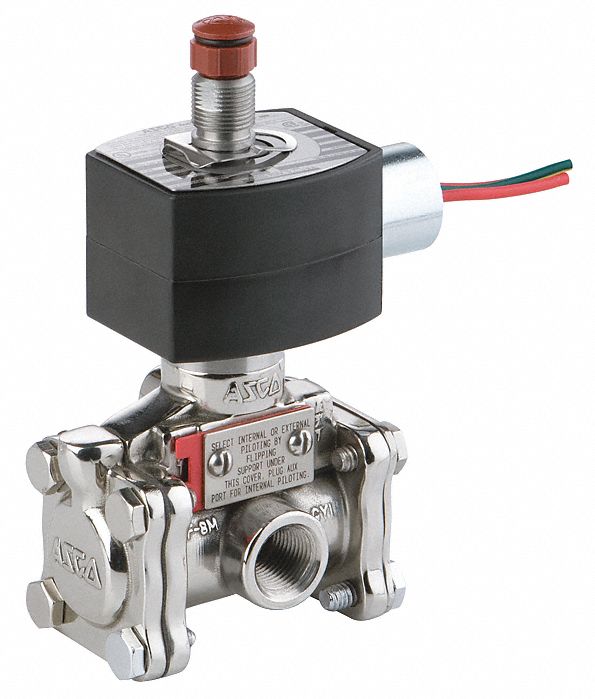

This RED HAT solenoid valve minimizes temperature rise and power draw so that you can reduce wiring and operate this DC valve directly off of the computer control. Model is for use in an inherently safe system which will not ignite an explosive atmosphere.,Low power,Intrinsically safe
| Item | Solenoid Valve |
| Solenoid Valve Product Group | Solenoid Valve |
| Valve Ways and Positions | 3-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Air, Inert Gases |
| Pipe Size - Valves | 1/4 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 130 psi |
| Max. Operating Pressure Differential Light Oil | Not Rated |
| Environmental Rating - Valves | Explosion Proof, Indoor, Outdoor |
| Voltage | 24V DC |
| Coefficient of Volume | 1.5 |
| Body Material - Valves | Brass |
| Coil Insulation Class | F |
| Seal Material - Valves | NBR |
| Orifice Dia. | 5/16 in |
| NEMA Rating | 3, 3S, 4, 4X, 6, 6P, 7, 9 |
| Max. Fluid Temp. | 149 Degrees F |
| Watts | 0.55 W |
| Coil Enclosure | Explosionproof and Watertight |
| Electrical Connections | 1/2 in Conduit w/18 in Leads |
| Overall Length | 4 1/16 in |
| Overall Width | 2 1/16 in |
| Overall Height | 6 in |
| Center Line Pipe Center Size | 4 1/4 in |
