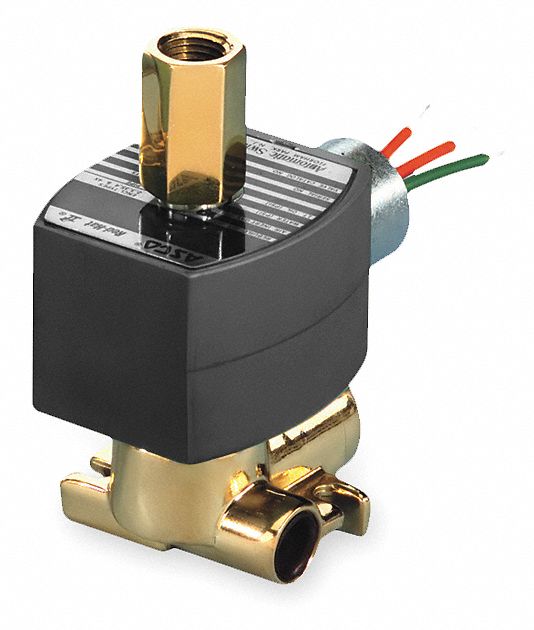

Redhat 24V DC Brass Solenoid Valve, Universal, 1/4" Pipe Size - EF8317G307

RedhatSKU: C1935596
MPN : EF8317G307
Weight : 1.75 lb
filler

Price:
$530.48 $646.93

Availability : Usually Ships in 7-10 Business Days

This solenoid valve features universal valve configuration and is suitable for use with air and inert gases. It is rated for indoor and outdoor work environments. It can be connected in normally closed position to close when de-energized, or normally open position to open when de-energized.

ItemSolenoid Valve
Solenoid Valve Product GroupSolenoid Valve
Valve Ways and Positions3-Way/2-Position
Valve ConfigurationUniversal
Media - ValvesAir, Inert Gases
Pipe Size - Valves1/4 in
Min. Operating Pressure Differential5 psi
Max. Operating Pressure Differential Air/Inert Gas150 psi
Max. Operating Pressure Differential Light OilNot Rated
Environmental Rating - ValvesExplosion Proof, Indoor, Outdoor
Voltage24V DC
Coefficient of Volume0.08
Body Material - ValvesBrass
Coil Insulation ClassF
Seal Material - ValvesNBR
Orifice Dia.1/16 in
NEMA Rating3, 3S, 4, 4X, 6, 6P, 7, 9
Max. Fluid Temp.140 Degrees F
Watts1.8 W
Coil EnclosureExplosionproof and Watertight
Electrical Connections1/2 in Conduit w/18 in Leads
Overall Length2 in
Overall Width2 in
Overall Height4 in
Center Line Pipe Center Size3 1/2 in
