Redhat 120V AC Brass Solenoid Valve, Normally Closed, 3/8" Pipe Size - 8316G054120/60 110/50DA

RedhatSKU: C1935567
MPN : 8316G054120/60 110/50DA
Weight : 4.35 lb

filler

Price:
$483.76 $780.26

Availability : Usually Ships in 10 Business Days

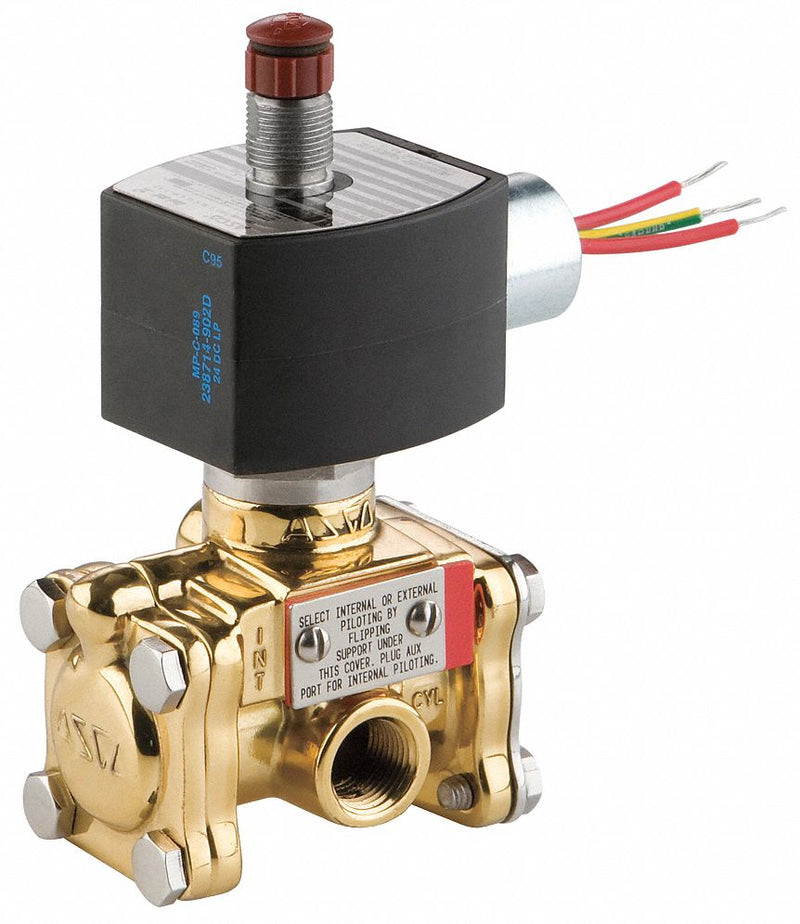

This solenoid valve features normally closed valve configuration and is ideal for use with air and inert gases. Use in indoor and outdoor work environments. Features 3 pipe connections and 2 orifices that alternately apply pressure to, and exhaust pressure from valve actuators and single-acting cylinders.

ItemSolenoid Valve
Solenoid Valve Product GroupSolenoid Valve
Valve Ways and Positions3-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesAir, Inert Gases, Water
Pipe Size - Valves3/8 in
Min. Operating Pressure Differential10 psi
Max. Operating Pressure Differential Air/Inert Gas150 psi
Max. Operating Pressure Differential Light OilNot Rated
Max. Operating Pressure Differential Water125 psi
Environmental Rating - ValvesIndoor, Outdoor
Voltage120V AC
Coefficient of Volume2.5
Body Material - ValvesBrass
Coil Insulation ClassF
Seal Material - ValvesNBR
Orifice Dia.5/8 in
NEMA Rating1, 2, 3, 3S, 4, 4X
IP Rating66
Max. Fluid Temp.180 Degrees F
Hz50/60
Watts6.1 W
Coil EnclosureWatertight No Junction Box
Electrical Connections1/2 in Conduit w/18 in Leads
Overall Length2 7/8 in
Overall Width4 5/16 in
Overall Height5 15/16 in
Center Line Pipe Center Size3 15/16 in
