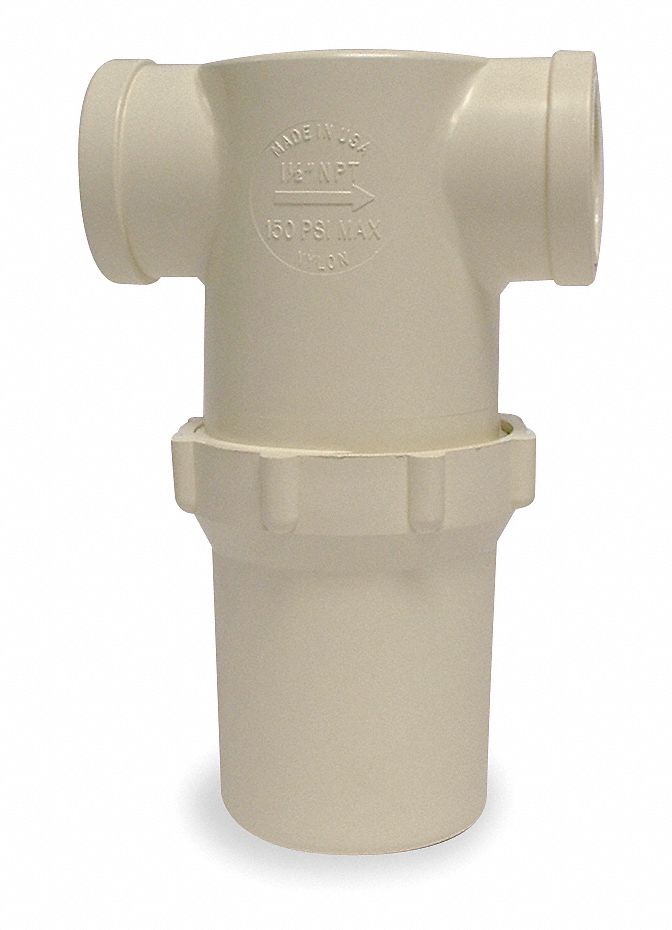

Economical solution for cost effective filtering and straining this low profile T-line strainer is ideal for use use as drinking water prefilters and in agricultural sprayers, floor scrubbers, pressure washers, medical devices, and car wash applications. The included 304 micron stainless steel filter screens can be easily cleaned or replaced by removing the bowl; no need to remove the entire strainer from the line.
| Item | Low Profile T-Line Strainer |
| Pipe Size | 1 1/2 in |
| Connection Type | FNPT |
| Max. Fluid Temp. | 125 Degrees F |
| Length | 5 in |
| Height | 8 in |
| Microns | 305 |
| Mesh | 50 |
| Screen Material | 304 Stainless Steel |
| Screen Area | 38.27 sq in |
| Housing Material | Nylon |
| Flow Rate | 15 gpm |
| Max. Pressure | 100 psi @ 125 Degrees F |
| Bowl Color | White |
| Gasket Material | EPDM |
| Color | White |
