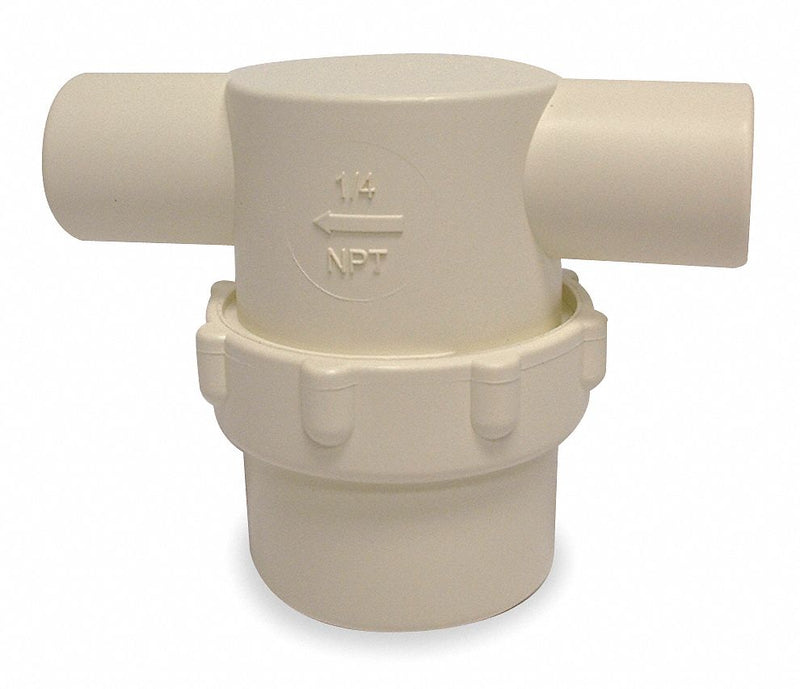

Top Brand 50 Mesh Low Profile T-Line Strainer, 305 Microns, 1/4 in Pipe Size - 7221390

Top BrandSKU: C1944832
MPN : 7221390
Weight : 0.11 lb
filler

Price:
$28.80 $35.12

Availability : Usually Ships in 20-30 Business Days

Economical solution for cost effective filtering and straining this low profile T-line strainer is ideal for use use as drinking water prefilters and in agricultural sprayers, floor scrubbers, pressure washers, medical devices, and car wash applications. The included 304 micron stainless steel filter screens can be easily cleaned or replaced by removing the bowl; no need to remove the entire strainer from the line.

ItemLow Profile T-Line Strainer
Pipe Size1/4 in
Connection TypeFNPT
Max. Fluid Temp.125 Degrees F
Length3 in
Height2 7/16 in
Microns305
Mesh50
Screen Material304 Stainless Steel
Screen Area3.95 sq in
Housing MaterialNylon
Flow Rate0.5 gpm
Max. Pressure100 psi @ 125 Degrees F
Bowl ColorWhite
Gasket MaterialEPDM
ColorWhite
